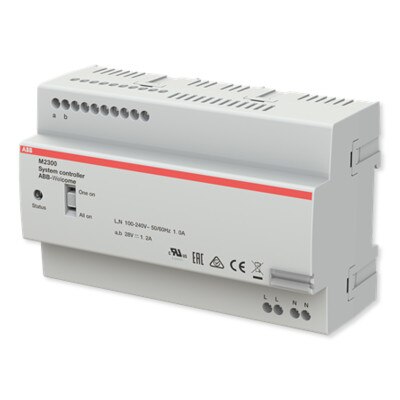

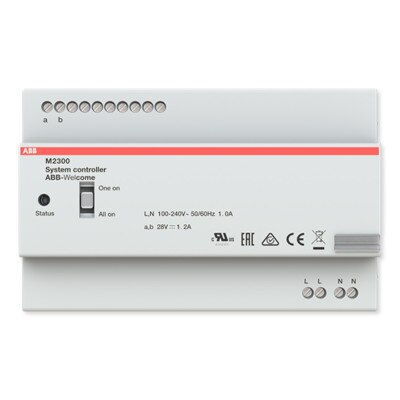

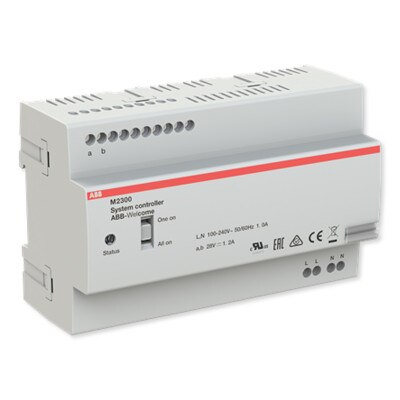

ABB Welcome System Controller, MDRC, 1200mA, With Updated All On/One On Setting
Product Description
This mini system controller serves as the brains and primary source of power of the ABB-Welcome Door Entry systems and manages communication between 8 connected devices – outdoor stations, indoor stations, guard units, and other ABB-Welcome system components. It can also serve as an auxiliary BUS power supply.
- Two Working Modes:
- All on: All video indoor stations in a single apartment receive video calls from the outdoor station.
- One on: Only the master video indoor station receives video calls from the outdoor station.
- Serves as an auxiliary power supply when connected to the gateway in a certain mode
- 1 LED for normal working condition indication
- It is equipped with overheat, short-circuit and lightning protection
Tech Specs
- Part Number: M2300-101
- EAN: 6955891818026
- System Capacity:
- 9 Guard Units per System
- 60 Buildings per System
- 250 Indoor Stations per Building
- 9 Outdoor Stations per Building (including gate and other outdoor stations)
- 2 Locks per Outdoor Station
- Operating Temperature: -13° to 131°F (-25° to 55°C)
- Storage Temperature: -40° to 158°F (-40° to 70°C)
- Protection: IP20
- Single-Wire Clamps: 2 x 0.28 mm2 ~ 2 x 1 mm2
- Fine-Wire Clamps: 2 x 0.28 mm2 ~ 2 x 1 mm2
- Mains Voltage: 100-240V, 50/60 Hz, 1A
- Bus Voltage: 28 ± 2VDC, 1.2A
- Size: 8U
- Dimensions: 3.54 x 5.67 x 2.56 inches
- Warranty: 2 Years
