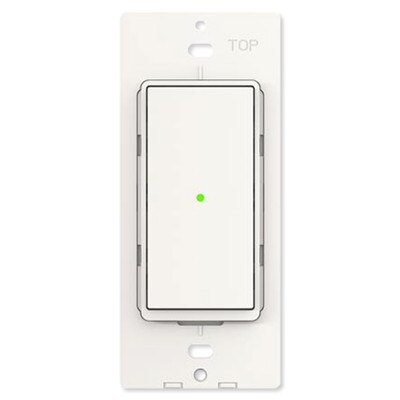

ABB-free@home Light Switch
Product Description
The ABB-Free@home Light Switch easily turns lights on and off and it has a wireless control unit that connects it to the ABB-free@home system. When integrated into the ABB-free@home smart home system, the light switch can be programmed as a remote to control other ABB-free@home devices. The rocker paddle can be programmed as a keypad controlled with the upper and lower rocker functions.
- Single green LED on rocker paddle lights when switch is in the on position
- LED backlight assists with locating the light switch in the dark
- Binary input allows for connection of a mechanical switch for three-way applications with light control from multiple locations
- Available in white and light almond colors to compliment any home decor
- Fits in standard decorator-style wall plates
In The Box:
- Light Switch
- Manual
Notes: Requires connection to the ABB-free@home System Access Point 2.0 (sold separately). Requires connection to the ABB-free@home system.
Tech Specs
- Part Number:/strong>
- LS-1.1-LA (Light Almond)
- LS-1.1-WH (White)
- Load Type:
- Incandescent/halogen: 15 A (1800 W)
- Magnetic low voltage transformer (MLV): 8 A (960 W)
- Electronic low voltage transformer (ELV): 15 A (1800 W)
- Fan (Max. 1 Fan Allowed): 400 W
- Fluorescent (Lamps without Compensation or Ballast): 12 A (1440 W)
- LED Lamps (Max. 20 lamps): 180 W
- Operative Voltage: 120 VAC, 60Hz
- Connection: Hot and Neutral wires required
- Wireless Protocol:
- free@home
- 2.400 – 2.483 GHz
- Meshed
- Operating Temperature: 23° F to 113° F (-5°C to 45°C)
- Certifications: UL, FCC, IC
