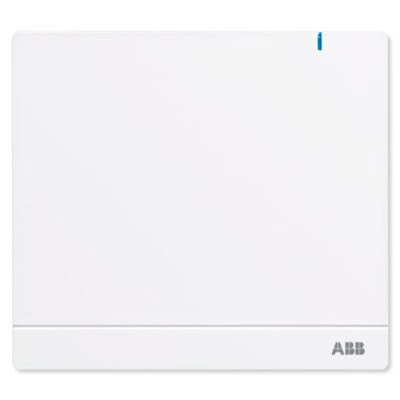

ABB-free@home System Access Point 2.0

$208.00 $304.02

Quantity	Price

SKU: ABSAPS3US

5 available at this price.

WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

Pay in 4 interest-free payments. Learn More.

Product Description

The ABB System Access Point is the control center for your ABB-free@home™ smart home system. This intelligent hub allows for configuration of your ABB-free@home system and access from your PC or mobile devices. Geofencing capability gives you the ability to automate scenes – such as turning on lights, adjusting temperature and playing music – as you move through your home or specific rooms.

Features:

Intelligent hub with dual-core processor and commissioning software
Remotely accessible via the ABB-free@home app or a web browser
Includes an astronomic time clock
Offers logic functions for sequencing of scenes (if this, then that)
Supports 2.4 GHz or 5 GHz Wi-Fi and cabled connections for home network
Offers one RJ45 and two USB ports and ships with external power supply
Optional external antenna available to allow for mounting in distribution panels

In The Box:

System Access Point 2.0
Mounting Base
2 x Wall screws
2 x Wall anchors
Wired Bus Connection
Power Supply Connection Terminal
Plug-in Power Supply with Adapter
Strain-relief bracket with 2 screws

NOTE: For indoor use only. Requires an Internet connection in order to operate.

Tech Specs

Part Number: SAP/S.3-US
Dimensions: 4.29 in (W) x 4.21 in (H) x 1.18 in (D)
External Wall Plug Power Supply: 24 VDC / 300 mA (enclosed, SELV)
DIN Rail Power Supply Operating Voltage: 24 VDC / 300 mA (SELV), NEC Class 2 (LPS)

Connection terminal: 0.8 – 1.0 mm (AWG 18 – AWG 20)
Line type: J-Y(St)Y, 2 x 2 x 0.8 mm
Wire stripping: 6 – 7 mm
