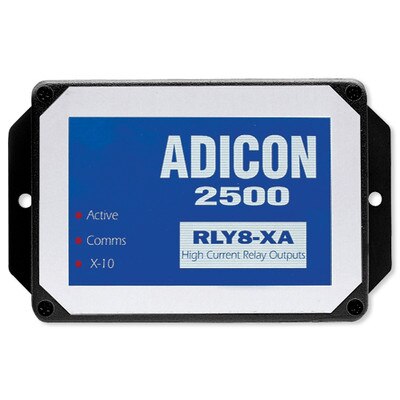

Applied Digital ADICON 2500 High Current IR Relay Module
Product Description
Allows you to add 8 High Current Relays (240V @ 5 Amps, Form C), and can be controlled by being hardwired to a Ocelot or Leopard II controller, or can be connected to an X10 TW523 or PSC05 (not included) and controlled via X10 from any controller with X10 capability.
Tech Specs
- Size: 5.65"L x 3.75" x 1.38"H
- Power: 9 DC, 800 mA.
- I/O:
- Relay Outputs: Screw Terminals (Form C, 10A)
- X10: RJ11 Jack for TW-523 or PSC05 (Cable included)
- X10 Address: Jumper Selectable (House codes A-P)
- ADNET: 2 Screw Terminals (up to 14 AWG)
- Power: 2 Screw Terminals (up to 14 AWG)
