Advanced Dynamics Splitter/Wallplate Pro Original, Antronix Splitter Approved, White (Open Box)

$4.50 $8.07
SKU: AVADSWP3W_OB

2 available at this price.

WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

Product Description

Splitter/Wallplate Pro puts the digital cable splitter on your wall (not on your floor). You don't need a connector cable. That cable, splitter on the floor, old school wall plate and two connections all go away. And, that saves you $$$.

Plus, fewer connections can only be good for signal strength. And hey, it is a cool cable management move – making an entire cable disappear.

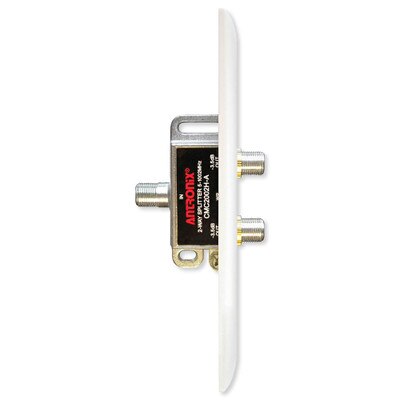

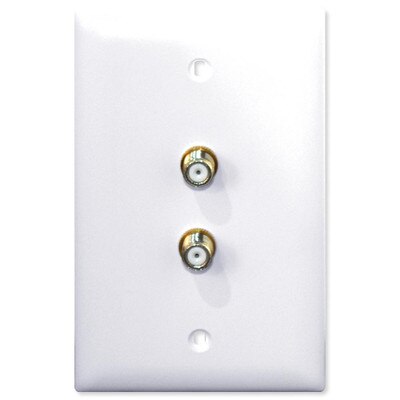

  • Wallplate with integrated splitter
  • Featuring the Antronix CMC2002H Professional Signal Splitter – 1GHz
  • Tested, Approved, Installed by all major North American MSOs and Verizon FiOS
  • Fast and simple install
  • Bi-directional for HDTV and Internet
  • Proven digital performance
  • Society of Cable and Telecommunication Engineers (SCTE) compliant with specified flat F-connectors that are 15 PSI sealed and 1 inch separated.
  • Requires no connector cable

In The Box:

  • Splitter/Wallplate Pro
  • 2 x Screws

Tech Specs

  • Part Number: ADSWP3W
  • UPC: 094922461476
  • Color: White
  • Size: 1-Gang
  • Type: Bi-directional
  • Wallplate Material: Nylon
  • Connector Pins: "F" connectors – 15 PSI sealed; 1 inch separated
  • Bandwidth: 5 MHz to 1 GHz (1002 MHz)
  • Nominal Impedance: 75 Ohms
  • F-Connector Type: ANSI/SCTE-01 (formerly SCTE IPS-SP-400) Compliant ECT F-Port
  • F-Connector Torque Specs: 30 in. lbs.
  • Surge Withstand: 6 kV Ring Wave Surge per IEEE C62.41 Category A3
  • Second Harmonic: -45 dBmV after Five 6 kV Ring Wave Surge with a +55 dBmV Return Input Carrier
  • Pressure Seal: 15 psi
  • Operating Temperature: -40°F to 140°F (-40°C to 60°C)
  • Corrosion Resistance: Meets SCTE/ANSI Specification
  • Certifications: Verizon FiOS approved; SCTE compliant; meets IEEE specification C62.41 Category A3
