Aeotec Z-Wave Plus v2 MultiSensor 7, Gen7 (Open Box)

$56.26 $76.99
SKU: AEZWA024_OB

5 available at this price.

WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

Product Description

The Aeotec MultiSensor 7 was developed to detect real-time status values and movement within a room and to report them to your Z-Wave automation hub. It is powered by Aeotec's Gen7 technology, which includes Z-Wave 700 features including double encrypted security, longer transmissions, and longer battery life. MultiSensor 7 is the foundation of a modern smart home; within its perfectly small exterior lies six different sensors to give you a complete report of the status of a single room.

Features

Motion Sensor – Infrared sensor captures motion within a 33ft (10m) range and a 120-degree field of view to be used for security and automation purposes, sending alerts or triggering automated scenes when movement is detected.

Temperature Sensor – Incremental temperature sensor measures between -14 to 122°F (-10 to 50°C) within a 2°F (1°C) degree of accuracy and reports sudden temperature changes back to a smart home gateway.

Light Sensor – Digital light sensor measures the ambient level of light in a room, from 0 to 30,000 lux. Program scenes to activate/deactivate based on light levels and time of day.

Humidity Sensor – Sensor monitors a room's humidity ranging from 20% to 90%, to automatically activate/deactivate fans, motorised windows, dehumidifiers and humidifiers.

Vibration Sensor – Seismic sensor detects slight vibrations from touching the sensor, bumping into the wall/surface the sensor is mounted to, and even seismic activity.

UV Sensor – Digital UV sensor measures a room's UV level from 0 to 11 to warn of health and environmental concerns, such as excessive sun exposure or furniture bleaching/fading.

In The Box:

  • MultiSensor 7
  • Battery Cover
  • Double-Sided Tape
  • 2 x Screws

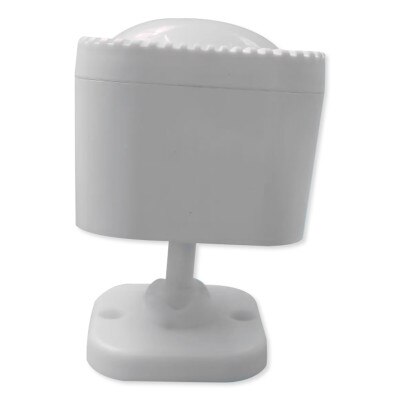

  • Back Arm Mount
  • Warranty Card
  • Quick Start Guide

NOTES: Requires a compatible Z-Wave controller, sold separately. Optional batteries not included. MultiSensor 7 is intended for use in dry locations only.

Tech Specs

  • Part Number: ZWA024
  • UPC: 810667025403
  • Z-Wave Plus Certified: Yes
  • Series 700: Yes
  • S2 Security: Yes
  • FLiRs supported: Yes
  • Power supply:
    • USB DC 5V
    • Battery power (2 x CR123A batteries, 3V, 1500mAh).
    • Not compatible to rechargeable CR123A batteries (3.7V)
  • Maximum power consumption during a report: 28mA
  • Voltage input:
    • USB power:
      • Min Voltage = 4.5VDC
      • Max Voltage = 5.5VDC
    • Battery Power:
      • Min Voltage = 2.6VDC
      • Max voltage = 3.2VDC
  • Repeater:
    • Battery powered: No
    • USB powered: Yes
  • Sensor Technical Information
    • Measured Temperature Range: 14°F to 122°F (-10°C to 50°C)
    • Temperature Accuracy: ±1.8°F (±1°C)
    • Measured Humidity Range: 20%RH to 90%RH.
    • Humidity Accuracy: ±5% RH (at 25°C/77°F).
    • Lighting: 0 LUX to 30000 LUX.
    • UV Range: 0 to 11 UV index
  • Operating Humidity: 8% to 80%.
  • Operating Temperature: 32°F to 104°F (0 to 40°C)
  • Max Motion Detection Range: 33ft (10m)
  • Water Proofing: IP20 rating
  • Battery Life: ~3 years using 2x CR123A batteries
  • Operating Distance:
    • Up to 492 feet outdoors.
    • Up to 150 metres outdoors.
  • Weight: 65 g

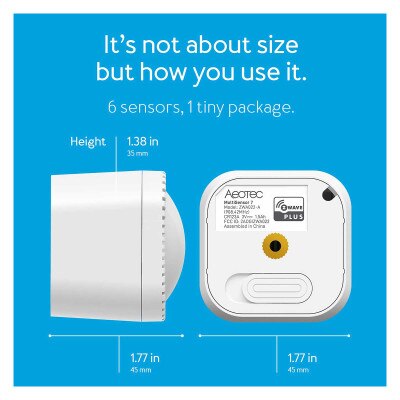

  • Product Dimensions: 45 x 45 x 35 mm
  • Back Mount Plate Dimensions: 24 x 24 mm
  • Warranty: 1 Year

Product Docs
