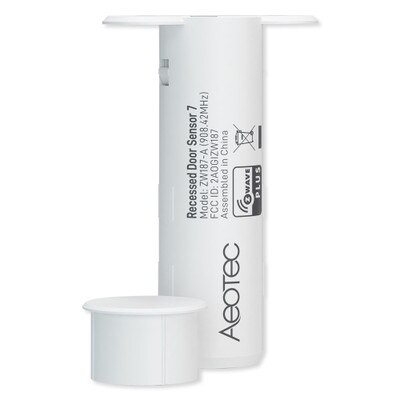

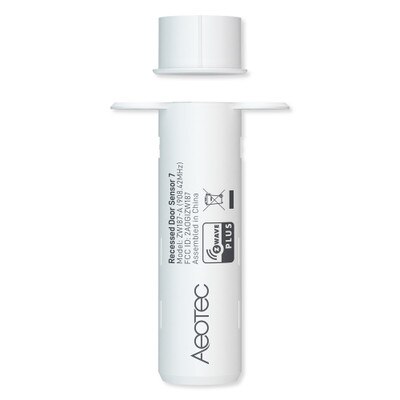

Aeotec Z-Wave Plus v2 Recessed Door Sensor 7, Gen7


This is a popular product! Shipping is currently delayed by a few weeks, but you can still place your order. Please feel free to contact us for more information.

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Product Description

Aeotec's Recessed Door Sensor 7 is designed as the door sensor always should have been. It doesn't stand out from your home's decor or stack onto your door. Instead it installs within your door frame, invisibly monitoring and reporting whenever it opens and closes.

The Recessed Door Sensor tells you and your Z-Wave network if a door is open or closed and enables you to create a whole new level of control through Z-Wave Plus. With it, you can trigger alarms through your Z-Wave network, know when someone arrives or leaves, or create automated events when the sensor is triggered. All enabled by one simple, powerful and invisible device. Z-Wave compatible.

Despite its small size, Recessed Door Sensor's wireless communication is powered by the same powerful technology that underpins much of Aeotec's home automation range: Z-Wave Plus. Each unit offers low-power communication over a distance of as much as 131 feet (40 m) indoors and 492 feet / (150 m) outdoors.

Installing the Recessed Door Sensor 7 is easy. Adding it to your home's network takes no more than activating its battery and syncing it with your Z-Wave system. The sensor is easily hidden from plain sight with just a slight drill hole into the frame of your door. Installation takes no more than 10 minutes but provides years' worth of benefits.

In The Box:

  • Door Sensor
  • Battery
  • Double-Sided Tape
  • Mounting Screws
  • User Manual

NOTES: Requires a Z-Wave controller, (sold separately).

Tech Specs

  • Part Number: ZW187
  • Operating Distance: Up to 131 feet (40 m) indoors, 492 feet (150 m) outdoors
  • Frequency: 908.42 MHz
  • Battery: Lithium cell CR2 battery, 3V, 800 mAh
  • Working Current: 30mA
  • Standby Current: 10uA (Inside the Z-Wave network) / 50uA (Outside the Z-wave network)
  • Max Standby Power Consumption: 0.03mW
  • Battery Life: 1 Year
  • Operating Temperature: 32 to 140° F (0 to 40° C)
  • Relative Humidity: 8 to 80 percent
  • Size: 1.92 x 6.4 cm (main body), 2.2 x 1.3 cm (Magnet Sensor)
  • Waterproof and Dustproof Rating: IP20
  • Certifications: FCC, CE, RoHS, Z-Wave Plus
  • Warranty: 1 Year
