Aeotec Z-Wave Plus illumino WallMote 7


Order now and we'll ship usually within 3-5 business days.

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Product Description

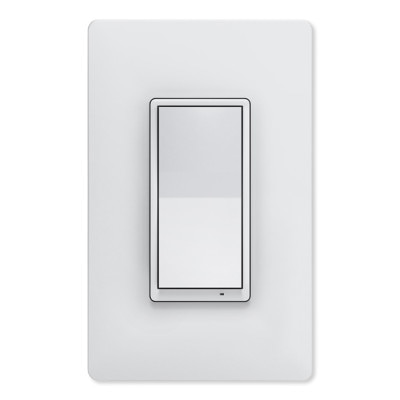

The Aeotec illumino WallMote 7 is a battery powered remote control disguised as a wall switch. Once it is synced with your Z-Wave hub, you can control any Z-Wave dimmer, switch or automated scene as you would any other switch. The WallMote 7 can be installed as a surface mount switch or placed into a standard 1-gang junction box.

The WallMote 7's Multitap functionality allows it to issue On/Off, Dim/Brighten, and Activate/Deactivate Scene commands to individual devices, dimmable lights, power outlets, pre-programmed scenes, and more. It can even command non-Z-Wave devices if its connected hub/gateway is compatible with multiple wireless protocols. If it is connected to your gateway, simply set up the WallMote to control any manner of simple or complex routine or automation.

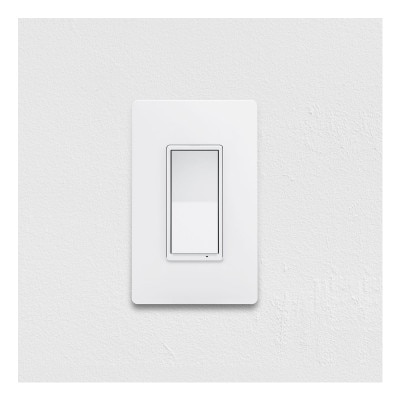

Install WallMote 7 within a wall box like a standard light switch, mount it upon any wall, or use it like a handheld remote.

In The Box:

  • illumino WallMote 7
  • Wall Plate
  • Screw Plate
  • Face Plate
  • 2 x Long Screws
  • 2 x Short Screws
  • Double-sided adhesive tape

Tech Specs

  • Part Number: ZWA022-A
  • Z-Wave Plus: Yes
  • Series 700: Yes
  • Repeater: No
  • Beaming: No
  • Security Class: S2 auth, S2 unauth, Non-Secure
  • SmartStart: Yes
  • Number of child nodes: 2
  • Number of buttons: 2
  • Press functions per Group Association:
    • Tap
    • Press and Hold
    • Release
  • Press functions per Scene use:
    • Tap
    • 2x Tap
    • 3x Tap
    • 4x Tap
    • 5x Tap
    • Press and Hold
    • Release
  • Control Use:
    • Scene Control
    • Group Association
  • Power Supply: 2x 3.0V CR2032 batteries
  • Continuous Maximum Load:
    • 960W LED, CFL, Halogen, Incandescent
    • 1/2 HP Motor
    • 1800W (15 A) Resistive
  • Operating Temperature: 32°F to 104°F (0°C to 40°C)
  • Operating Humidity: 8% to 80%.
  • Operating Distance: 144ft (35m) Indoor, 394ft (120m) Outdoor
  • Product Dimensions: 4.09 x 1.8 x 0.51 inches (105 x 46 x 13 mm)
  • Product Weight: 0.04 lbs (20g)

Product Docs
