Aeotec Zigbee Range Extender Zi

$29.99
SKU: AEZGA001A

IN STOCK! Ships same business day if ordered before 3pm PT

WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

Product Description

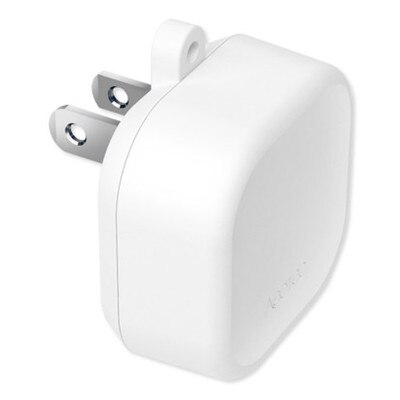

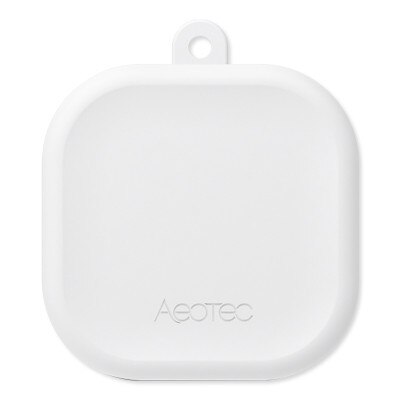

The Aeotec Range Extender Zi is a Zigbee 3.0 signal repeater and is "Works with SmartThings" certified. The Range Extender repeats and amplifies Zigbee radio signals up to 328ft/100m and uses the latest Zigbee technology to eliminate signal dead spots in your smart home. An LED indicates the device's connection status and can be left on or turned off. The Range Extender connects to most of Zigbee compatible system hubs like SmartThings or Home Assistant. Install the Range Extender Zi into a standard wall outlet, connect it to your gateway, and the Range Extender Zi will start to optimize your Zigbee powered smart home.

In The Box:

  • Range Extender Zi
  • User Manual

NOTE: This item is a Zigbee frequency extender; it will not work to boost your Wi-Fi signal.

Tech Specs

  • Part Number: ZGA001-A
  • UPC: 810667025533
  • Zigbee Hardware: EFR32MG21A0120
  • Zigbee 3.0 Repeater: Yes
  • Max Signal Strength: 8.90 dBm
  • Working Band: 2.4GHz
  • Operating Distance:
    • More than 50 meters indoors / More than 164 feet indoors.
    • Up to 100 meters outdoors / Up to 328 feet outdoors.
  • AC Input: 120V 60Hz, Max: 68mA
  • Max Power Consumption: 0.8W
  • Plug Type: A Type
  • Operating Temperature: 32°F to 104°F/0°C to 40°C.
  • Relative Humidity: 8% to 80%.
  • Waterproof and Dust Rating: IP20 under IEC 62368-1
  • Product Dimensions: 2.09 x 1.81 x 1.57 inches (53.2 x 46 x 40 mm)
  • Package Dimensions: 2.99 x 2.67 x 2.28 inches (76 x 68 x 58 mm)
  • Product Weight: 38g
  • Total Package Weight: 66 g
  • Certifications: FCC, CE
  • Warranty: 1 Year
