Arlington Low-Profile TV Box for Shallow Wall Depths


IN STOCK! Ships same business day if ordered before 3pm PT

WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

Pay in 4 interest-free payments. Learn More.

Product Description

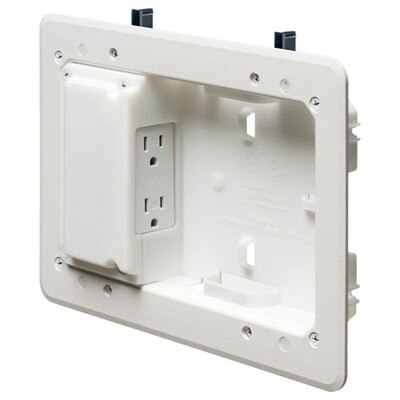

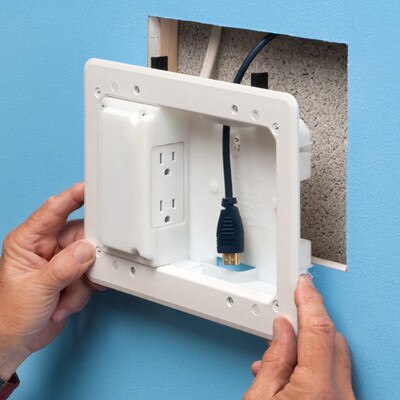

Arlington's low profile 5" x 8" TV BOX is ideal for flat screen TV installations on 1/2" or 5/8" drywall with wall cavity depths 3/4" and larger. Applications in new work or retrofit include:

  • Furring strips on concrete block walls
  • 2x2, 2x3 and 2x4 or larger studs

The low profile TVL508 box is also helpful when plumbing or other obstructions run within the wall cavity. It has lots of room inside for multiple cables and brackets for tying them off – keeping the installation neat and organized.

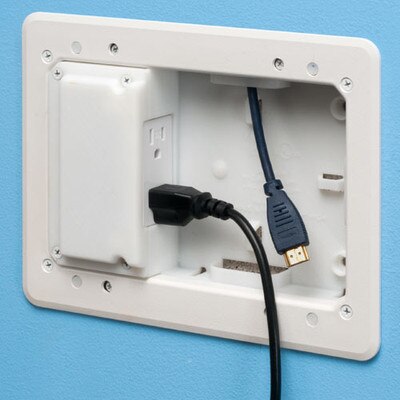

  • Plugs stay inside box so TV mounts closer to the wall
  • Mounting wing screws hold box securely in the wall
  • Includes UL Listed decorator style receptacle
  • cULus Listed

In The Box:

  • (1) TVL508 Low-Profile TV Box
  • (1) UL Listed Decorator Style Receptacle

Tech Specs

  • Size: 5(H) x 8(W) inches
  • Box Depth: 1-1/4 inches
  • Weight: 1.028 pounds
  • Stud Size: 2 x 2, 2 x 3, 2 x 4, or Larger
  • Material: Plastic
  • Listing: cULus
  • Application: Installation of Flat Screen (LCD, LED, Plasma) TV on 1/2" or 5/8" Drywall with Shallow Wall Depths

Product Docs
