Autoslide Microwave Wireless Motion Sensor, Single

$160.00
SKU: AS050MWWx

Please Select Option To View Availability

WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

Product Description

The Autoslide Microwave Wireless Motion Sensor is perfect for entrances with constant sun exposure, which could inhibit IR sensors effectiveness. These sensors have a wider and farther field of activation. The microwave sensor has a directional pivot in order to increase or decrease the area of activation by motion.

Features:

  • Compatible with all Autoslide systems
  • Senses motion via disturbances within 10 x 13ft radar range
  • Great for heavy sun areas where IR sensors are less effective
  • Directly wired to Autoslide sensors for reliable performance and continuous power

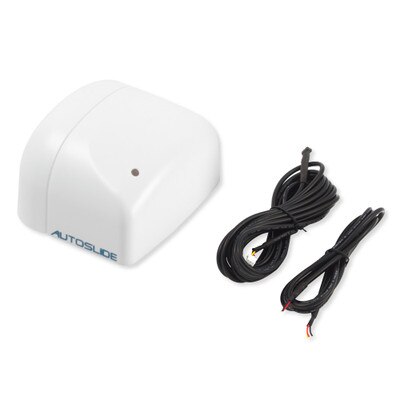

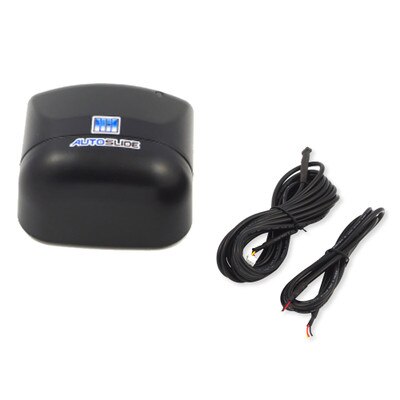

In The Box:

  • Microwave Sensor
  • 8ft Sensor Cable
  • 2 x Screws

NOTE: Do not install the sensor above 3m in height, as it may not detect pets or small children.

Tech Specs

  • Part Number:
    • Black: AS050MWWB
    • White: AS050MWWW
  • UPC:
    • Black: 647923341492
    • White: 647923341485
  • Outer Dimensions: 64mm x 55mm x 35mm
  • Launch Power Density: 5m W/cm^2
  • Launch Frequency: 24.125 GHz
  • Installation Height: Below 3.5m
  • Supply Voltage: 12V to 24V, AC/DC
  • *Angle Adjustment: 0° to 90°
  • Power Consumption: 1W (max)
  • Max Detecon Range: 4m (width) x 3m (depth)
  • Temperature Range: -20°C to +65°C
  • Output Relay Maintain Time: 1.5s
  • IP Protection Rate: IP54
  • Warranty: 2-Year Limited
