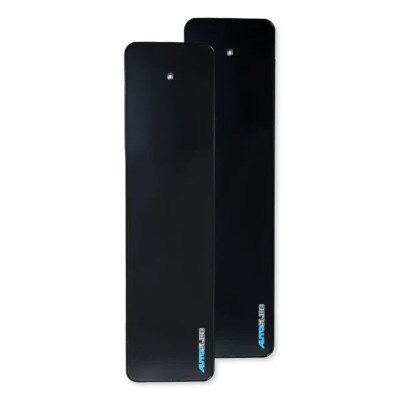

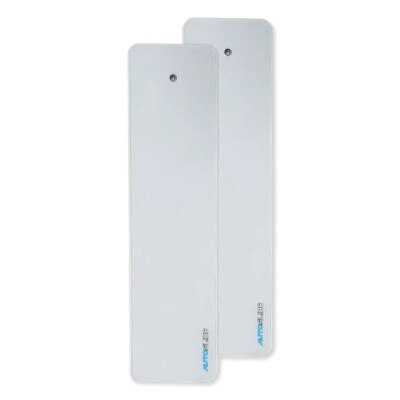

Autoslide Wall Mounted Touch Button, Twin Pack

$126.35
SKU: AS05TBTx

Please Select Option To View Availability

WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

Product Description

The Autoslide Wireless Wall Mounted Touch Buttons provides two wireless transmitters that remotely control a connected Autoslide motor from up to 50 feet away. When pressed for 2 seconds, a Touch Button will trigger a connected Autoslide motor to change its current status from Open to Close or vice versa. These touch buttons can be mounted on any flat surface such as a wall, wheelchair, or furniture with included screws or double-sided adhesive tape. Up to 15 touch buttons and remote transmitters can be included into the same Autoslide system via the Sensor Learn button. The wall mounted touch button is battery operated and should work for at least 300 months before needing to change the batteries.

Features:

  • Battery operated wireless transmitter triggers connected Autoslide motors with Open/Close Commands
  • Wireless transmission range of up to 50 feet away
  • Up to 15 touch buttons and other transmitters can be included into a single Autoslide system
  • Mounts on any flat surface with included screws or adhesive tape

Why You Would Use This Product:

The Autoslide Wireless Wall Mounted Touch Buttons offer convenient remote control over an Autoslide controlled door. The Button's versatile mounting options allow them to be placed anywhere convenient within your home or building so that you always have a nearby option to activate your Autoslide.

In The Box:

  • 2 x Wireless Touch Buttons
  • Mounting Hardware

NOTE: Each button requires two CR2032 batteries.

Tech Specs

  • Part Number:
    • AS05TBTB: Black
    • AS05TBTW: White
  • UPC:
    • AS05TBTB: 608011126193
    • AS05TBTW: 608011126209
  • Power Supply (Receiver): DC 12~30V
  • Static Current (Receiver): 30mA (DC12V)
  • Action Current (Receiver): 74mA (DC12V)
  • Main Contact Capacity: 1A / 24VDC
  • Contact Suction Holding Time: 2 Seconds
  • Power Supply (Transmitter): 2 x 3V batteries
  • Standby Current (Transmitter): <10 µA
  • Emission Current (Transmitter): 7.5mA
  • Battery Life (Transmitter): up 60 300 days
  • Receiver Sensitivity: ~95dbm
  • Signal Range: Up to 50ft (15m) line of sight
  • Dimensions (Transmitter): 5.31 L x 1.4 W x 0.39 H inches
  • Dimensions (Receiver): 4.33 L x 1.18 W x 0.59 H inches
  • Weight: 2 oz.
