Bundled Cable (4 Cat5e), 500'

$380.86
SKU: WR4CJ

Order now and we'll ship usually within 3-5 business days.

Shop More From Wire Products

WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

This is a heavy and/or oversized item and does not qualify for our shipping promotion.

Product Description

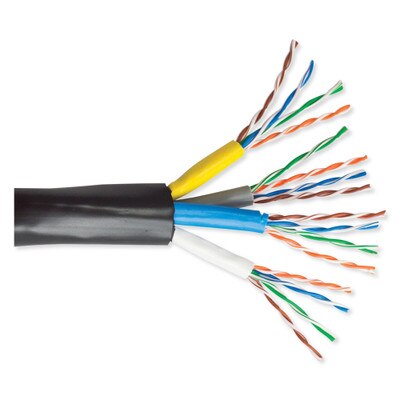

The Structured Cable Products Cat5e 4x, 24AWG, 350MHz, 500ft contains 4 Cat5e ethernet cables within PVC jacket housing. These cables reduce installation time and wear to the individual cables due to improper installation.The SCP Structured-Composite cables support many technologies for data/CATV/Satellite/Audio/ and high definition signals.

All SCP Structured-Composite cables are In-Wall rated, NEC CM, CEC CMG FT4, RoHS, CE, and UL listed.

NOTE: If you need to remove a portion of the outer jacket, we recommend that you score the outer cable jacket with a scoring device or razor before stripping back the outer jacket. The internal rip cord is designed to be used after the outer jacket has been sufficiently scored. Please be careful during scoring so as to not damage the jackets of the internal cables. Any scoring damage caused to the internal cable jackets are not covered by the warranty.

Tech Specs

  • Part Number: HNC-10
  • Conductor (Cat5e):
    • Material: Solid Bare Copper
    • Size: 24AWG X 4P
    • Construction: 1/0.50±0.004mm
  • Insulation:
    • Material: HDPE
    • Min.Thickness: 0.188mm
    • AVG.Thickness: 0.20mm
    • Diameter: 0.9±0.1mm
    • Colors:
      • Blue: White/Blue
      • Orange: White/Orange
      • Green: White/Green
      • Brown: White/Brown
  • Assembly (4CAT5e):
    • Material: PVC
    • Min.Thickness: 1.05mm
    • AVG.Thickness: 0.60mm
    • Diameter: 5.20± 0.20mm
    • Rip Cord: Nylon
    • Colors: Black

Electrical & Physical Characteristics (Cat5e)

  • Operating Temperature Range: -20°C + 75°C
  • Conductor Resistance: Max 93.8 ohm/km at 20°C
  • Dielectric Strength: Min AC1
  • Insulation:
    • Unaged
      • Tensile Strength: 12.3Mpa
      • Elongation: 150%
    • Aged
      • Tensile Strength: 9.8Mpa (100°C 168h)
      • Elongation: 100% (100°C 168h)
  • Jacket:
    • Unaged
      • Tensile Strength: 13.8Mpa
      • Elongation: 100%
    • Aged
      • Tensile Strength: 11.7Mpa (100°C 168h)
      • Elongation: 50% (100°C 168h)
  • Rated Voltage: Max 300 Volts
  • DC Resistance Unbalance: Max 5%
  • Pair-to-Ground Capacitance Unbalance: Max 330pF/100m
  • Nominal Velocity of Propagation: 66%
  • Delay Skew: Max 45ns/100m
