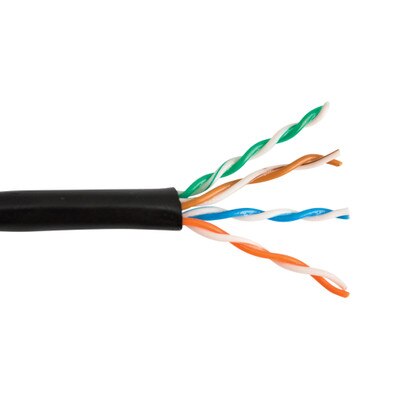

Cat5e Cable, Direct Burial, Gel-Filled, 1,000'

$212.35
SKU: WRCAT5EDBG10B

Order now and we'll ship usually within 1-2 business days.

WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

This is a heavy and/or oversized item and does not qualify for our shipping promotion.

Product Description

Description: CAT5E DIRECT BURIAL GEL TYPE – 350 MHz 24 AWG SOLID 4PR UTP, GEL FILLED, TIA/EIA 568-C.2, ISO/IEC 11801 Ed2, LLDPE JKT – BLACK – 1000 FT SPOOL

Product Information:

SCP Cat5e UTP (unshielded twisted pair) Direct Burial cables meet TIA/EIA 568-C.2 Category 5e and ISO/IEC 11801 Ed2 Class D standards. SCP Cat5e UTP Direct Burial cables are constructed with a high quality Linear Low-Density Polyethylene (LLDPE) direct burial jacket that provides high impact protection and superior puncture resistance while retaining flexibility and strength even in harsh environments. This is a true direct burial cable unlike many other cables advertised as direct burial that use inferior PVC based jacketing.

Each Cat5e UTP Direct Burial cable is 350 MHz 24 AWG with insulated solid bare copper conductors. The cable is gel filled (flooded) for superior moisture resistance. This creates a round and flexible cable.

These cables are CMX rated for use in direct burial applications without conduit. It is packaged on 1000ft/305 meter wooden spool/drum.

Available in spools of: 1,000 Ft.

Tech Specs

  • Part Number: CAT5E-DB-GEL
  • Sheath Printing: STRUCTURED CABLE PRODUCTS – – – P/N CAT5E-DB-GEL – – – CAT5E DIRECT BURIAL ENHANCED 350 MHz 4 PR 24 AWG SOLID UTP GEL FILLED LLDPE VERIFIED TO ANSI/TIA-568-C.2 CE EU RoHS EC ZONE/DEVICE A B C D E 0 1 2 3 4 5 6 7 8 9 XXXX FEET MM/YY
  • Category: U/UTP GEL CAT5e-4P-PE
  • Test Standard: ISO/IEC11801, TIA-568-C.2 YD/T1019
  • Conductor:
    • Material: SOLID-Bare Copper
    • Nom. O.D.: 0.5 mm, ±0.005 mm
  • Insulation:
    • Material: HDPE
    • Diameter: 1.00 mm ± 0.03 mm
  • Color:
    • Blue: White-Blue
    • Orange: White-Orange
    • Green: White-Green
    • Brown: White-Brown
  • Rip-Cord: Yes
  • Drain Wire: No
  • Sheath:
    • Thickness: 0.55 ±0.05 mm
    • External O.D.: 5.5 mm ± 0.5 mm
    • U.V Stability: U.V Resistant
    • Material: LLDPE (complies RoHS)
    • Color: Black
  • Surface Printing:
    • Letter Height: 3.0 mm ±0.3mm
    • Color: White
    • Print Error / Space: <= ±0.5 percent, 1m
  • Packing: Wooden reel
  • Weight: NW: 11.0kg; GW: 12.5kg
  • Packing Length: 305m ±1.5m

Sheath Physical Properties

  • Before Aging:
    • Tensile Strength: >=10.0 Mpa
    • Elongation: >=350 percent
  • Aging Period: 100°C x 24hrs x 10d
  • After Aging: Elongation: >=300 percent
  • Cold Bend Test: -20°C 4 hours; No Cracking

Electrical Characteristics (20°C)

  • 1.0-100.0MHz, Characteristic Impedance: 100 ohms ±15 ohms
  • 1.0-100.0MHz, Delay Skew:<=45 ns/100m
  • DC Resistance Max: 9.5 ohms/100m
  • DC Conductor Resistance Unbalance Max: 5.0 percent
