Channel Vision 4x4x4 Combo Module

Item # CVC0244

This is a popular product! Shipping is currently delayed by a few weeks, but you can still place your order. Please feel free to contact us for more information.

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

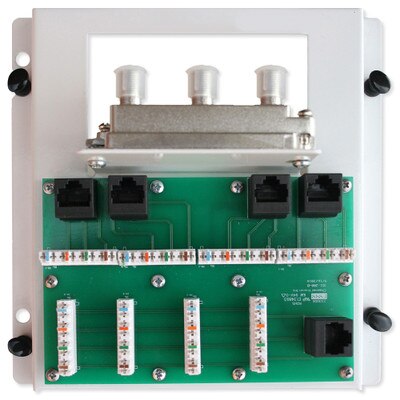

The C-0244 is a low-cost and easy-to-use telephone, cable and data distribution module that delivers 4 CO lines to 4 phone locations, data to 4 locations and cable/antenna to 4 locations. It can be used as a standalone distribution module or as an expansion module for larger systems. The 110 style connectors provide a quick and simple installation that will ensure long-lasting, trouble-free operation.

  • Compatible with all Channel Vision Structured Wiring Enclosures
  • Distributes antenna or cable up to 4 locations
  • Distributes CO lines to 4 phone locations
  • Ideal for high-bandwidth video streaming applications
  • Cost-effective and easy to install
  • Compatible with category 5, and 5E wiring
  • Compact design to save space
  • Cost effective and easy to install
  • 10 year warranty
  • Part Number: C-0244
  • 110 Connectors: 4 (all bridged), RJ-45 input
  • Recommended Wire: CAT5 (22-24AWG)
  • Wiring Standard: T568A
  • Warranty: 10 Years

Data Distribution

  • 110 Connectors: 4
  • RJ-45: 1
  • RJ-45 Configurations: T568B
  • Compliant Standards: 10/100/350
  • Wire Type: UTP Category 5 or 5E

4-Way RF Splitter

  • Inputs: 1
  • Outputs: 4
  • Frequency: 5-1000MHz bandwidth
  • Dimensions: 6.5(L) x 6.5(W) x 3(D) inches
