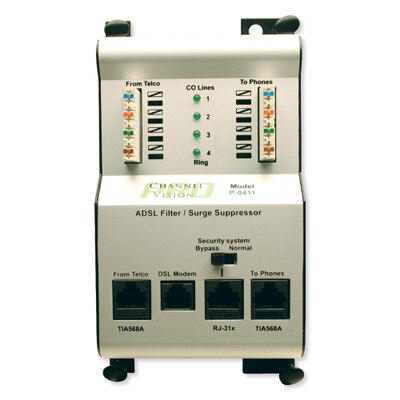

Channel Vision DSL Filter & Phone Surge Protection Module

$19.75 $45.21
SKU: CVP0411

2 available at this price.

WARNING: Cancer and Reproductive Harm –

Product Description

This discreet, convenient solution offers noise filtering, surge protection and an RJ-31X security system interface.

The P-0411 ADSL Filter and Surge Module serves three key purposes in one device and is ideal for customers who rely on telephone and data services through ADSL. Its all-in-one design helps to reduce cost, service complexity, installation time and mounts easily into a structured wire enclosure.


  • Efficiently filters data noise from all household phones
  • Eliminates the need for unsightly DSL filters at each phone
  • Offers valuable peace of mind and protection against lightning strikes and other Telco service surges
  • Blocks surges at the Telco point of entry
  • Self-healing; resets automatically after an incident
  • 4-lines In/Out including: (2) 110 connections, (2) RJ-45 ports
  • RJ-31X port for security systems requiring a telephone interrupt line
  • Active line and surge LED indicators
  • ABUS paging compatible

Tech Specs

  • Telco Inputs: 2 (1-RJ-45 and 1-110)
  • Outputs: 2 (1-RJ-45 and 1-110)
  • RJ-45 Pinout: TIA568A
  • Dimensions: 3.0(W) x 6.5(H) x 1.25(D) inches
  • Insertion Loss:< 0.5dB at 1020Hz
  • Attenuation:
    • 30KHz,200KHz,300KHz > 65dB
    • 500KHz,1104KHz > 55dB
