Channel Vision 1-Input Micro Modulator
Product Description

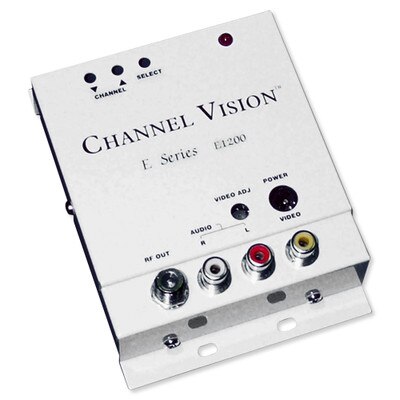

The E1200 is designed to distribute a modulated channel of an incoming video source such as security cameras, VCRs, DVDs or other video/audio appliances. To enhance the performance of the E1200, the unit should be combined with Channel Vision products such as passive splitters, HS-6 and HS-8, or powered distribution systems, CVT-2/8WB. Combining various distribution options with the E1200 allows the combination of CATV or off-air signals to be sent with the output of the E1200, creating a total RF distribution system of incoming services and inhouse created channels to every room with the system.
- 25dBmV output
- Wide channel range cable 65-135 (excluding 95-99) UHF 14-78
- Push button channel selector
- Non volatile memory
- Unaffected by voltage brownouts
Tech Specs
- RF Modulator: PLL Synthesized Oscillator
- Video: NTSC 0.4-2.7V Peak to Peak
- Number of Channels: 1
- Audio 1VRMS: L&R combined Mono
- RF Output: 25dbmV max.
- S/N ratio: > 52dB
- Certifications: UL and CSA approved
Connectors
- Video/Audio Inputs: RCA Female
- RF Output: F Type Female
- Bandwidth: 5-1000Mhz
RF Carriers
- Frequency Stability: ±1Khz
- Frequency Range: UHF 471.25-855.25Mhz
- Ultraband: 469.25-859.25Mhz
- Channels: UHF 14-78 / Ultraband 65-135 (except 95-99)
- Channel Width: 6Mhz
- Audio Offset: 4.5Mhz
- Sidebands: Double
Spurious Output Rejection (non-harmonic)
- Outside Carrier: +12Mhz Greater than 62dBC
- Inside Carrier: +12Mhz Greater than 55dBC
- Power Requirements: 12VDC at 250mA
- Dimensions: 4.8(W) x 7(H) x 1.6(D) inches (12.1 x 17.8 x 4.06cm)
- Weight: 2 pounds
