Chief FUSION Tilt Wall Display Mount, 26-47"

$140.80
SKU: CMMTA1U

IN STOCK! Ships same business day if ordered before 3pm PT

WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

This is a heavy and/or oversized item and does not qualify for our shipping promotion.

Product Description

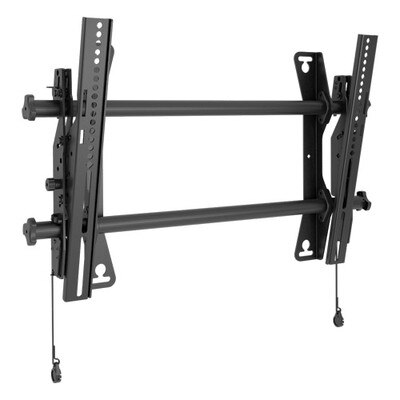

Medium Fusion Tilt Wall Mount

Chief upgraded fixed wall mounts based on installer feedback and direct observations of installers in the field. Many new features join Fusion favorites like Centerless shift, Centris tilt and ClickConnect Latching.

New benefits included added stability, faster install, improved lateral shift, easier cable management and enhanced security.

Installer-inspired Fusion tilt mount solves top flat panel installation problems, offering flexible adjustments for large displays with a low-profile display mounting solution.

For single stud applications, order the FCA1S Single Stud Adaptor Accessory.

Features

  • Integrated teardrop design speeds up wall plate installation by allowing pre-installation of the bolts to the wall
  • Centerless Shift provides up to 12.9" (327 mm) of post-installation lateral shift for limitless centering
  • Centris low-profile tilt uses the center of gravity to balance the screen while maintaining a low profile
  • Set screws keep the mount rigid, stable and secure throughout the life of the installation
  • ClickConnect offers an audible click when the screen safely engages with the mount
  • Built-in cable stand provides easy access under the screen
  • A full line of accessories can be installed with the mount and the entire unit can be adjusted together
  • Multiple installation options for various stud distances
  • Exclusive nesting spacers can be stacked to achieve any depth
  • Quick-Store Cords use magnets to easily store and access pull cords
  • Improved cable management with new end caps
  • Integrated Security
  • Ships with a custom hardware kit that can be hung from mount rails if installing in stages
  • Easy Open box with less waste to throw away

Tech Specs

  • Part Number: MTA1U
  • Color: Black
  • Lateral Shift: 12.9 inches (327 mm)
  • Maximum Screen Thickness: 6 inches
  • Minimum Depth: 2 inches (51 mm)
  • Manual Height Adjustment: 1 inch (25 mm)
  • Mounting Pattern Compatibility (Universal Versions): 100 x 100mm – 640 x 400mm
  • Orientation: Landscape
  • Overall Dimensions: 16.5(H) x 25.75(W) x 2.0(D) inches (419 x 654 x 51 mm)
  • Shipping Weight: 15.86 pounds
  • Solution Type: Universal
  • Tilt: +2°, -12°
  • Typical Screen Sizes: 26 to 47 inches
  • Wall Stud Compatibility: 16-24 inches
  • Weight Capacity: 125 pounds (56.8kg)
  • Certifications: UL Listed
  • Warranty: 10 Years
