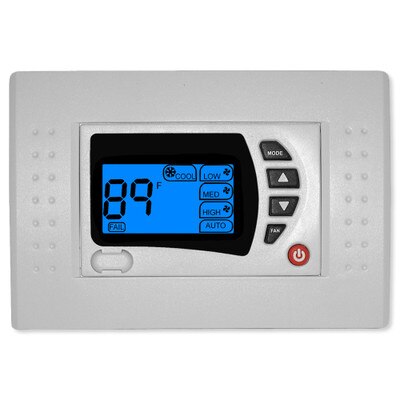

Cool Components Advanced Ventilation Controller
The Advanced Ventilation Controller (TC-AVC) is a programmable thermostat that can be used to control either high or low voltage fans. The controller can be hardwired to thermostatically control fans such as the Cool Components VS-IDF Inline Duct Fan and the VS-RSC Remote System Cooler. Additionally, it can be used to control low voltage fans by hard wiring it to an electrical outlet. This unit will enable the user to choose/program the appropriate set points for any application. The controller is wall mountable (rack mount version is coming soon), fully programmable and has a backlit LCD display to show ambient temperature and make programming simple. In addition to a built-in temperature sensor, an optional 20 foot remote sensor is available for added versatility. This may be used when sensing and controlling the temperature in a projector enclosure, rack or other remote location.
The controller features 5 relays that offer a large amount of flexibility and customization within your system. Two relays are programmable with one intended for fan operations and the other for alarm (all output high voltage only – do not connect low voltage products to the unit). The three fan relays trigger in relation to the user defined temperature set point with relay #1 triggered at the set point, #2 triggered at approximately 6 degrees higher, and #3 triggered at approximately 15 degrees higher than the main set point. For example, if you have an existing rack with high-voltage fans, you could attach primary fans to relay #1 and then secondary fans to relay #2. Venting fans could then be connected to relay #3. Ultimately the two alarm relays, 4 and 5, could be used to sound an audible alarm or power emergency fans to protect against a catastrophic failure if installed, for instance, in a rack full of server and switching equipment.
NOTE: This is a high voltage product. Be sure to contract a licensed electrician to ensure a safe and proper installation according to local codes.
- Controls Most High Voltage Fans
- Can Be Wired to an Outlet to Control Low Voltage Fans
- Programmable Set Points/Alarm
- Backlit LCD Display Shows Temperature in Fahrenheit or Celsius
- Multiple Relays for Flexibility
- Mounts in a 1-Gang Box
- Aesthetically Pleasing – Looks Like HVAC Thermostat
- ETL Listed and CE Mark
- Dimensions: 3.15(H) x 4.65(W) x 1.65(D) inches (8 x 11.8 x 4.2cm)
- Construction: White ABS Plastic
- Power Connection: Hardwired High Voltage
- Voltage: 120V/240V
- Current – Amp: Output Relays Rated at 5 Amps
