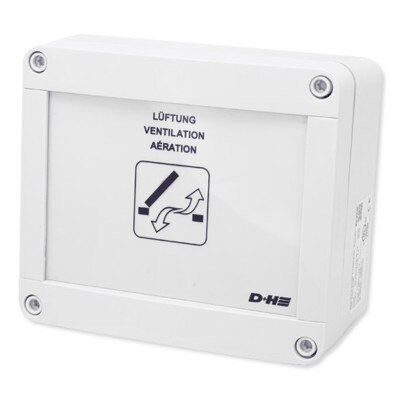

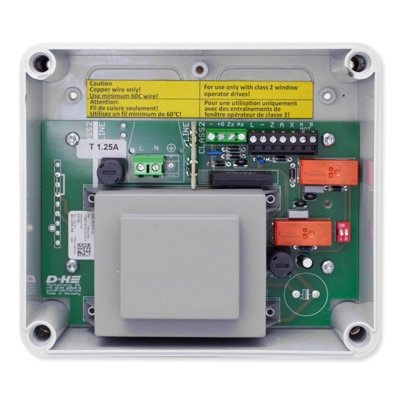

D+H Mechatronic Compact Ventilation Control Panel, Single Group


Order now and we'll ship usually within 3-5 business days.

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Product Description

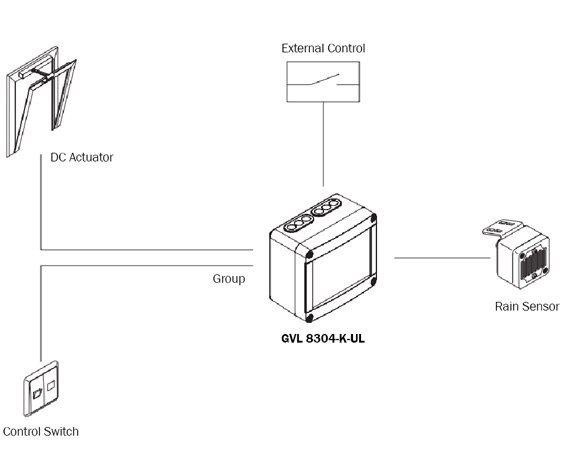

The D+H Compact Ventilation Control Panel, Single Group acts as an interface between AFI, D+H, UCS, and Truth Hardware DC Actuators, sensors, and controllers.

Almost any operable opening can be automated: awning (top-hinged), hopper (bottom-hinged), casement (side-hinged), hung or sliding windows; parallel windows (hinged on 4 sides); skylights, curtain wall and large ventilation panels.

Natural Ventilation systems, such as operable windows and skylights, save energy and lower operating costs by reducing air conditioning and heating use.


  • Powered control panel for 24VDC actuators
  • UL Recognized, self-contained, installation-ready unit
  • Compatible with Wind and Rain sensors (See accessories)
  • Short-time duty 20% duty cycle
  • 24VDC output compact control panel with up to 4A total drive current
  • Controls 1 ventilation group
  • Input for external controller (timer)

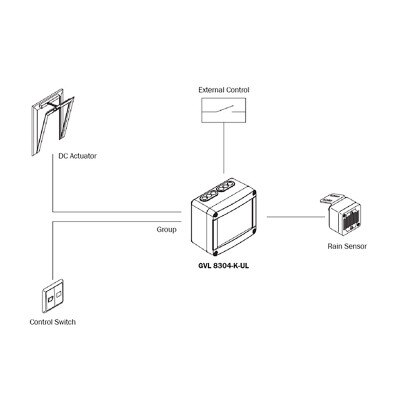

Compatible accessories include the following:

  • 30.902.20 Thermostat
  • 63.701.29 Control Switch
  • 30.300.90 Rain Detector. IP65. 24VDC
  • 30.301.10 Wind/Rain Sensor, Includes antenna mast mounting.
  • 70.602.17 Programmable Wind/Rain heated sensor

Tech Specs

  • Part Number: GVL 8304-K-UL
  • Supply Voltage: 120VAC (-15% / +50%)
  • Output: 24VDC / 4A
  • Protection Class: IP50
  • Listing: UL Recognized
  • Switch Types: SPDT Momentary contact (3 leads + ground)
  • Ambient Operating Temp: -5°C to +40°C (23°F to 104°F)
  • Dimensions: 172mm W x 151mm H x 95mm D (6-3/4" x 5-7/8" x 3-3/4")
  • Warranty: 5-Year Limited
