D+H Mechatronic Expandable Ventilation Control Panel with Enclosure Housing


Order now and we'll ship usually within 3-5 business days.

WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

Pay in 4 interest-free payments. Learn More.

This is a heavy and/or oversized item and does not qualify for our shipping promotion.

Product Description

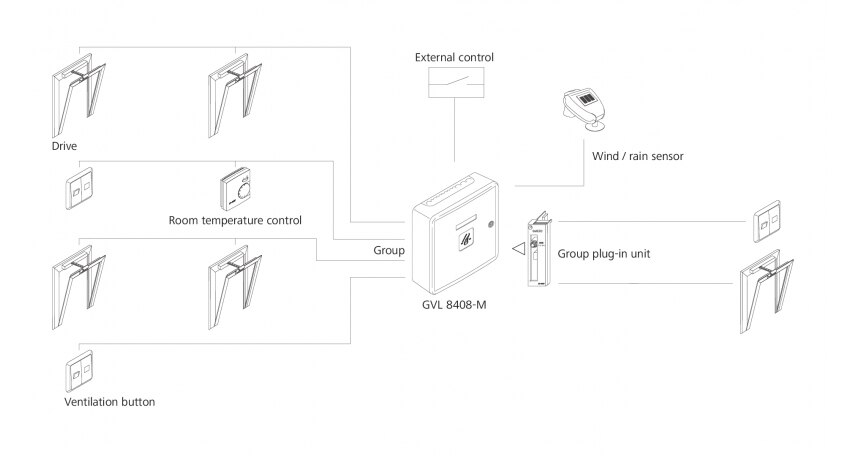

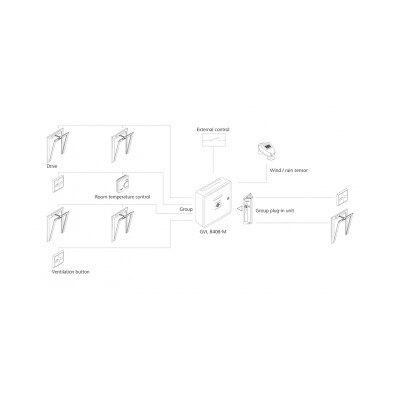

The D+H Expandable Ventilation Control Panel with Enclosure Housing acts as an interface between AFI, D+H, UCS, and Truth Hardware DC Actuators, sensors, and controllers. This powered control panel can support up to 5 groups of devices totalling to 8A max.

Almost any operable opening can be automated: awning (top-hinged), hopper (bottom-hinged), casement (side-hinged), hung or sliding windows; parallel windows (hinged on 4 sides); skylights, curtain wall and large ventilation panels.

Natural Ventilation systems, such as operable windows and skylights, save energy and lower operating costs by reducing air conditioning and heating use.

AFI actuators are SHE certified, capable of incorporating into systems to reduce smoke, heat and casualties during a fire.

  • Powered control panel for 24VDC actuators with up to 8A total drive current
  • Controls up to 5 groups, 8A Max total
  • Short-time duty 20% duty cycle
  • Input for external controller (timer), plus optional connection to rain detectors or wind/rain sensors without any additional modules
  • UL Recognized, self-contained, installation-ready unit

Compatible accessories include the following:

  • 30.902.20 Thermostat
  • 63.701.29 Control Switch
  • 30.300.90 Rain Detector. IP65. 24VDC
  • 30.301.10 Wind/Rain Sensor, Includes antenna mast mounting.
  • 70.602.17 Programmable Wind/Rain heated sensor

In The Box:

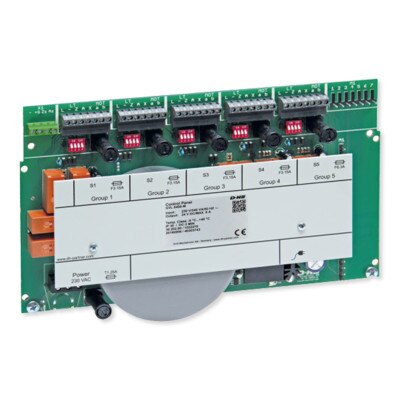

  • Control Panel

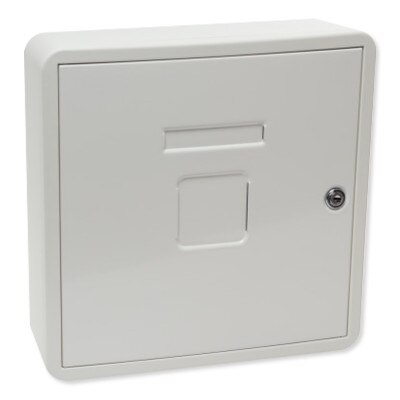

  • Enclosure

Tech Specs

  • Part Number: GVL 8408-M
  • Supply Voltage: 120VAC (-15% / +50%)
  • Output: 24VDC / 8A
  • Dimensions: 310mm W x 310mm H x 100mm D (12-1/4" x 12-1/4" x 3-7/8")
  • Ambient Operating Temperature: -5°C to +40°C (23°F to 104°F)
  • Listing: UL Recognized
  • Protection Class: IP50
  • Switch Type: SPDT Momentary contact (3 leads + ground)
  • Warranty: 5-Year Limited
