  • DoorBell Fon DP28 Extra Door Station, 2-Gang Masonry Box Mount

DoorBell Fon DP28 Extra Door Station, 2-Gang Masonry Box Mount

$130.15
SKU: ACDP28NxF

Please Select Option To View Availability

WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

Product Description

Back by popular demand with additional colors, the DP28F-Series Door Station models include DP28-NBF, DP28-NBKF, DP28-NBZF, and DP28-NSF. These units provide standard door-to-phone communication when used with the DP28-C*. All F-Series Door Stations mount into any standard double-gang masonry box as a flush mount. An optional back box (DP38-BXFS) is available as a surface mount. This weather-proof back box provides quality protection and durability for your unit. Colors are available in 4 anodized finishes: brass, black, bronze, and aluminum. These Door Stations are also available in kits with the DP28-C as the DP28-BF, DP28-BKF, DP28-BZF, and DP28-SF.

*DP28-C not Included

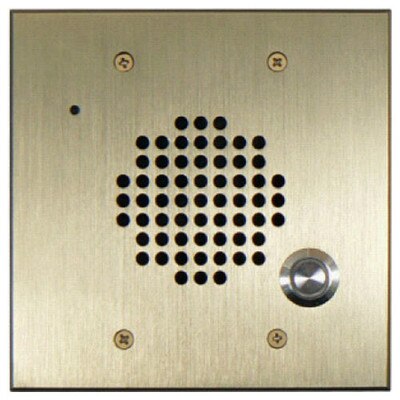

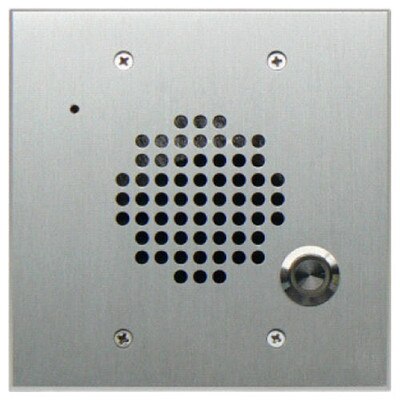

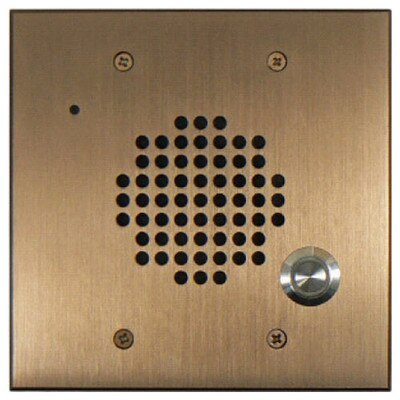

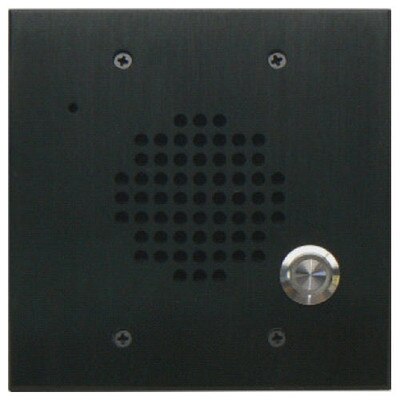

  • Manufactured in aluminum with anodized Brass, Black, Bronze, and Aluminum finishes
  • Mounts into any standard double-gang masonry box as a flush mount
  • Optional surface mount back box (DP38-BXFS) mounts easily on almost any surfaces including fences and gates
  • All back boxes are manufactured in steel with black powder-coating finish and provides superior protection from the elements
  • No external power required: power drawn from connected Door Station Controller (DP28-C)
  • LED button lights up when the Door Station is active

Applications:

  • Communicate with people at a door, gate, or any other entrance way where Door Station is present
  • Can be placed at:
    • Front/Rear Entrances
    • Remote Entryways
    • Marine Docks
    • Delivery Docks
    • Secured Facilities
    • Senior Housing
    • Disabled Housing
    • Apartment Complex
  • Use in conjunction with the DP29-CI to activate external trigger devices (e.g. door chimes, cameras, lights...) with the Door Station
  • Use in conjunction with the DP29-SW to open electronically locked doors or gates with the phone
  • Use as extra Door Station to any Door Station Kit

Tech Specs

  • Dimensions: 4.5 x 4.5 x 1.625 inches
  • Size: 2-gang
  • Shipping Weight: 2 pounds
  • Speaker:
    • Frequency Response: 400~2.8kHz
    • Impedance: 8 ohms
    • Peak Power: 0.25W
    • Diameter: 2.25 inches
  • Microphone Frequency Response: 200~6.8kHz
