DoorBell Fon DP38 Door Answering System, 2-Gang Masonry Box Mount

$258.93
SKU: ACDP38xF

Please Select Option To View Availability

WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

Product Description

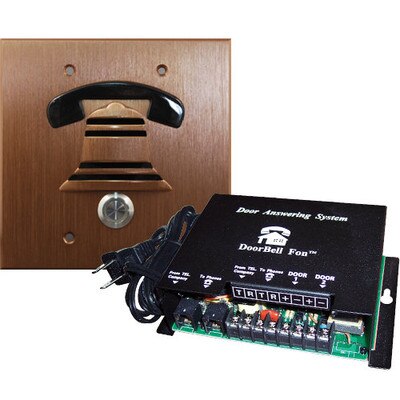

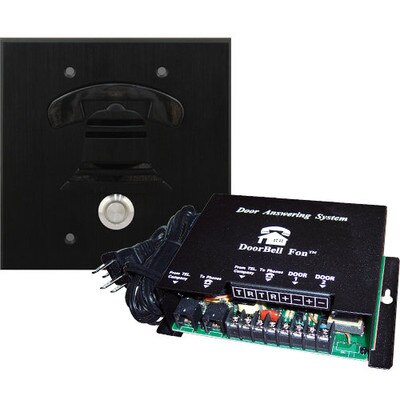

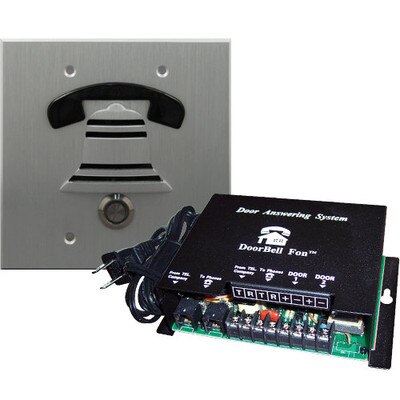

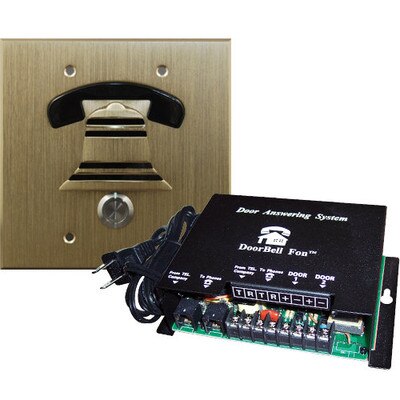

Includes one controller and one door station that mounts directly onto a 2-gang masonry box.

The 21st Century door-answering device is here. Bring Convenience, Security & Assistance to your home today with the DOORBELL FON. This amazing product allows users to answer a door or gate from any telephone in their home or business. It installs using a single pair of wire for power, control, signaling, and voice. All add on components install on the same single pair. No programming! No codes! Just pick up the telephone like a regular telephone call.

  • Mounts directly onto a 2-gang masonry box
  • Installs using single pair (power, control, signaling, voice)
  • Operates two separate entryways
  • Distinctive ring for each entryway
  • Built in call-waiting
  • PC board is enclosed in a plastic housing
  • Includes a camera housing where a pinhole camera can be placed (camera not included)
  • Button lights up when it is pressed

Applications

  • Front/Back door
  • Driveway Gates
  • Remote Entryways
  • Delivery Docks
  • Marine Docks
  • Secured Facilities
  • Senior Housing
  • Disabled Housing

Operation

Simple, when a visitor presses the button on the door box, the telephones will ring with a distinctive ring to let you know someone is at the door. Just simply pick up the telephone and you are automatically connected to that door. If you are on the telephone and a visitor comes to your door, you will hear a distinctive call-waiting tone. Press the "flash" key or hook switch and connect back to the outside call. When you're done with your call, just hang up your telephone. It is that simple.

Tech Specs

Main Controller

  • Power Requirements: 117VAC/60Hz, 0.1A, 12 Watts
  • Fuse 1: 250 VA, 0.5A
  • Fuse 2: 250 VA, 0.25A
  • Output: 17-28VDC (Voice), 750Vrms/25 ±2Hz (Ringing)
  • Operating Temperature: -20 to 120° F
  • Dimensions: 5.8125 x 3.875 x 1.75 inches
  • Weight: 2.1 pounds

DP38 Door Station (2-Gang Masonry Box Mount)

  • Power: No external power required
  • Dimensions: 4.5(W) x 4.5(H) x 1.625(D) inches
  • Shipping Weight: 2 pounds
  • Speaker
    • Frequency Response: 400~2.8kHz
    • Impedance: 8 ohms
    • Peak Power: 0.25W
  • Microphone Frequency Response: 200~6.8kHz
