DoorBell Fon Door Station Circuit Board
Product Description

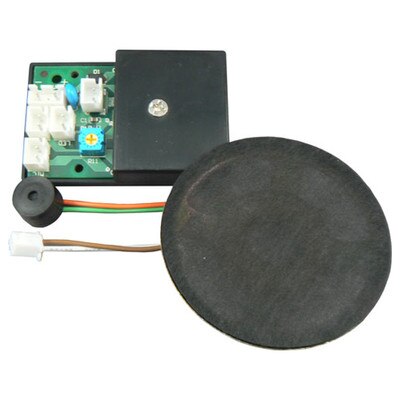

Building your own custom Door Station for your DoorBell Fon system? Then you'll need the RM29N. The slim Door Station Circuit Board can be easily installed in almost any trim design. The kit comes standard with a microphone, speaker, and protective cover for the circuit board.
- Comes with a microphone and speaker
- Comes with a protective cover for the circuit board
- LED let's the user know when the Door Station is active
- Volume adjustment available through the potentiometer
Tech Specs
- Power: No external power required if connected to Door Station Controller (DP29-C)
- Dimensions
- Circuit Board w/Cover: 2.25 x 1.5 x 0.563 inches
- Microphone Diameter: 0.5 inches
- Speaker Diameter: 2.25 inches
- Weight: 0.5 pounds
- Speaker
- Frequency Response: 400~2.8kHZ
- Impedance: 8 ohms
- Peak Power: 0.25W
- Microphone Frequency Response: 200~6.8kHZ
