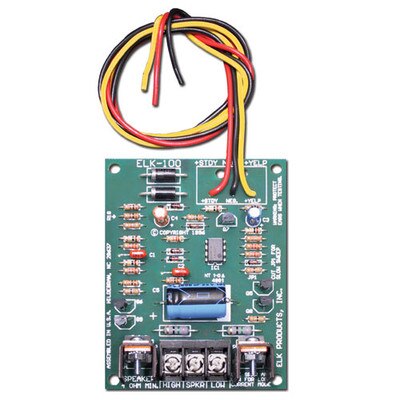

Elk High Performance Siren Driver Module

$30.03
SKU: ELK100

IN STOCK! Ships same business day if ordered before 3pm PT

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Product Description

The ELK-100 Siren Driver is a great choice for residential and commercial security installations. It draws less current than most siren drivers, and offers two volume levels (example: one indoor, the other outdoor) simultaneously. Our exclusive MilliMiser option allows further reduction of current draw for controls that have limited alarm or auxiliary output power. The ELK-100 has two inputs, Yelp and Steady. The Steady sound overrides the Yelp. The Yelp input has our unique ComboTrigger feature, especially designed for controls that have a single alarm output with a pulsing option for fire or burglary. When pulsed, this channel produces a distinctive third sound pattern.

  • Two volume levels can be used simultaneously
  • Draws less current than most sirens
  • Drives multiple speakers
  • ComboTrigger feature for single outputs
  • Pre-wired for easy installation

Listen to the Elk 100 Sounds

Tech Specs

  • Operating Voltage: 6 to 14 Volts DC
  • Current Draw: 1.2 Amps, (700 mA on MilliMiser setting), with one 8 ohm speaker
  • Sound Level: 120 db at 1 meter, 14 VDC, with one 8 ohm speaker
  • Max. Speaker Loading: 4 Ohms
  • Size: 2.75 x 3.6 inches (70 x 91 mm)
