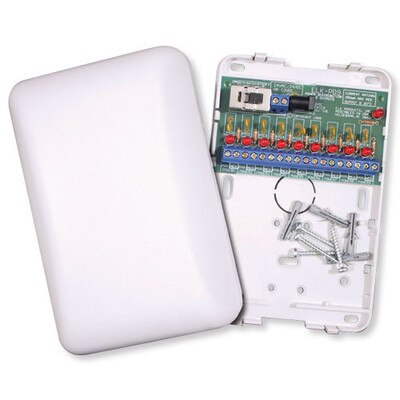

Elk Power Distribution Module, 9 Device
These Power Distribution Modules conveniently distribute a single A.C. or D.C. input into nine individual outputs, for centrally powering Video Cameras, PIRs, Photobeams, etc. Each output is protected with an auto-resetting PTC to protect a shorted output from disabling the other outputs. A visual LED power indicator is provided for each output along with a single Master Power On/Off Switch. The modules accept a 6 to 30 Volt A.C. or D.C. power source (not included) which connects either to the input terminal block or the 2.1mm D.C. power jack located on the module. Two or more outputs can be paralleled for additional current.
The module has visual LED power indicators on each output and a Master Power On/Off Switch. The module requires a 6 to 30 volt AC or DC power source (not included) which connects either to a terminal block or a 2.1mm DC power jack located on the module. Outputs can be combined for more current.
- Auto-Resetting (PTC) Overload Protection (NO FUSES to REPLACE).
- Master Power On/Off Switch.
- Visual LED Power Indicators on each Output.
- Convenient Test Points for measuring Total Current Draw.
- Paintable White Plastic.
