Elk Power Supply/Battery Charger Kit

$70.71
SKU: ELKP1215

Order now and we'll ship usually within 1-2 business days.

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Product Description

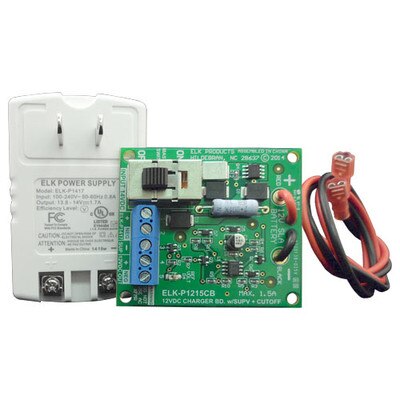

The ELK-P1215 Power Supply/Battery Charger Kit is a plug-in 14VDC Power Supply (ELK-P1417) combined with an intelligent Circuit / Charger Board (ELK-P1215CB). It can supply up to 1.5 Amps of current at 12VDC (nominal). The charger board features a Low Battery Supervision output, Low Battery Cutoff, as well as a Manual On/Off switch. The Power Supply features built-in overload reset and screw terminals for connections.

  • Auto-Resetting Overload Protection
  • Built-In Battery Charging Circuit
  • Low Battery Trouble Output
  • Low Battery Deep Discharge Cutoff Protection
  • Master Power Switch
  • Lifetime Limited Warranty

In The Box:

  • Power Supply (ELK-P1417)
  • Circuit / Charger Board (ELK-P1215CB)

NOTE: Does not include battery.

Tech Specs

  • Part Number: ELK-P1215
  • Power Supply Input: 14 Volts DC provided by ELK-P1417
  • Continuous Output Current: 1.5 Amps
  • Low Battery Trouble: 11 Volts. (nominal)
  • Low Battery Cutoff: 9 Volts. (nominal)
  • PC Board Size: 2.25 x 2.5 inches (57.15 x 63.5mm )
  • Standby Battery Charging Capacity: 1 to 12 Ah, Sealed Lead Acid
  • Battery Wire Length: 16" with F1-Faston No. 187 Receptacles
  • Master Power Switch: Turns On/Off the DC Input and Battery
  • Operating Temperature: 32° to 120°F
  • Humidity: 95 percent RH (max.), non-condensing
  • Warranty: Lifetime Limited
