ELK Power Supply/Battery Charger Kit with 12V, 5Ah Battery
Product Description
The ELK-P1215K Power Supply/Battery Charger Kit is a plug-in 14VDC Power Supply (ELK-P1417) combined with an intelligent Charger Board and a 12V 5Ah Battery (ELK-1250). It can supply up to 1.5 Amps of current at 12VDC (nominal). The charger board features a Low Battery Supervision output, Low Battery Cutoff, as well as a Manual On/Off switch. The Power Supply features built-in overload reset and screw terminals for connections.
Features:
- Auto-Resetting Overload Protection
- Built-In Battery Charging Circuit
- Low Battery Trouble Output
- Low Battery Deep Discharge Cutoff Protection
- Master Power Switch
- Lifetime Limited Warranty*
*ELK batteries carry a two-year warranty
Plug-in Power Supply, 14VDC at 1.7A - ELK-P1417
The ELK-P1417 14VDC plug in power supply features built-in overload reset and screw terminals for connections. It is ideal for alarm, access control, and CCTV applications requiring up to 1.7 amps. A receptacle mounting bracket is included.
Sealed Lead Acid Battery - ELK-1250
ELK Sealed Lead Acid Batteries are excellent for the following applications with regard to size, Amp hour rating, and proper terminal connections: battery backup (for Access Control Systems, Fire Alarm Systems, and Security Alarm Systems), emergency lights, lighted exit signs, and uninterruptible power supplies.

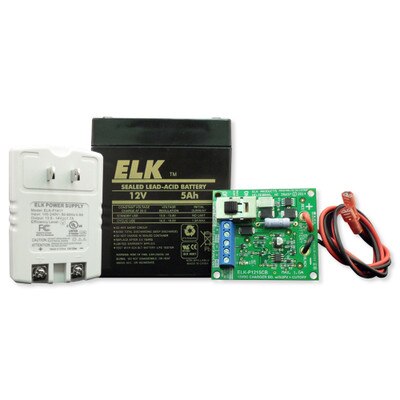

In The Box:
- 14VDC Plug-in Power Supply (ELK-P1417)
- 12V, 5Ah Sealed Lead Acid Battery (ELK-1250)
- Circuit / Charger Board (ELK-P1215CB)
- Power supply receptacle mounting bracket
Tech Specs
- Part Number: ELK-P1215K
14VDC Plug-in Power Supply (ELK-P1417)
- Input Voltage Range: 100 - 240 Volts AC, 50/60Hz
- Input Current: 0.8 Amps AC
- Output Voltage Range: 13.8 to 14 Volts DC
- Continuous Output Current: 1.7 Amps DC
- AC Input Plug Style: NEMA 1-15P (non-polarized)
- Screw Terminals: Positive and Negative screw terminals on DC output
- Size w/Mounting Bracket: 3.07 x 2.83 x 1.5 inches (78 x 72 x 38 mm)
- Approvals:
- Complies with UL 60950
- Compliant with Energy Star EISA Level V
- RoHS compliant (RoHS2-2011/65/EU)
- Warranty: Lifetime Limited
Circuit / Charger Board (ELK-P1215CB)
- Power Supply Input: 14 Volts DC provided by ELK-P1417
- Continuous Output Current: 1.5 Amps **
- Low Battery Trouble: 11 Volts (nominal)
- Low Battery Cutoff: 9 Volts (nominal)
- PC Board Size: 2.25 x 2.5 inches (57.15 x 63.5mm )
- Standby Battery Charging Capacity: 1 to 12 Ah, Sealed Lead Acid
- Battery Wire Length: 16 inches with F1-Faston No. 187 Receptacles
- Master Power Switch: Turns On/Off the DC Input and Battery
- Operating Temperature: 32° to 120°F
- Operating Humidity: 95 percent RH (max.), non-condensing
- Warranty: Lifetime Limited
** Higher output current (up to 2.5 Amps) may be drawn for a short time provided a fully charged battery is connected.
12V 5Ah Battery (ELK-1250)
- Nominal Voltage: 12 Volts
- Rated Capacity: 5 Ah (20 hour rate)
- Terminals: F1 Faston Tab (0.187 inch)
- Size: 3.54(L) x 2.76(W) x 4.17(H) inches (90 x 70 x 106 mm)
- Weight (approximate): 3.4 pounds (1.5 kg)
- Approvals: UL, CE
- Warranty: 2 Years
