ELK 12VDC Power Supply/Battery Charger, 2.4A
Product Description
The ELK 12VDC Power Supply/Battery Charger, 2.4A, Kit includes a plug-in 14VDC power supply and an intelligent charger board. Both of these devices work together to prevent low battery usage or deep discharge, which can sometimes occur when connected devices in a structured wiring enclosure do not have sufficient power to run. The charger board features a low battery supervision output, low battery cutoff, and a Manual On/Off switch, while the power supply features a built-in overload reset and screw terminals for connections.
- Includes a plug-in power supply and circuit board
- Auto-resetting overload protection and built-in battery charging circuit
- Low battery trouble output and deep discharge cutoff protection
- Master power switch
- Lifetime limited warranty

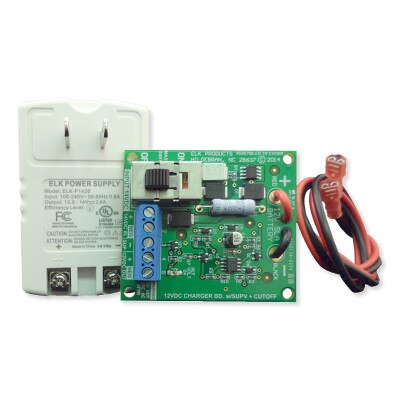

In The Box:
- Plug-In Power Supply
- Intelligent Charger Board
- Instructions
Tech Specs
- Part Number: ELK-P1224
- UPC: 762158014215
Plug-In Power Supply (ELK-P1426)
- Input Voltage Range: 100 – 240 Volts AC, 50/60Hz
- Input Current: 0.8 Amps AC
- Output Voltage Range: 13.8 to 14 Volts DC
- Continuous Output Current: 2.6 Amps DC
- Size with Mounting Bracket: 3.07" x 2.83" x 1.5" (78 x 72 x 38 mm)
- AC Input Plug Style: NEMA 1-15P (non-polarized)
- Certification: UL 60950, Energy Star EISA Level V, RoHS (RoHS2-2011/65/EU)
- Other Features:
- Positive and Negative screw terminals on DC output
- Plug-in power supply with receptacle mounting bracket
- Warranty: Limited Lifetime
Circuit Board (ELK-P1224CB)
- Power Supply Input: 14 Volts DC provided by ELK-P1426
- Continuous Output Current: 2.4 Amps (Higher output current up to 2.5 Amps may be drawn for a short time provided a fully charged battery is connected)
- Low Battery Trouble: 11 Volts. (nominal)
- Low Battery Cutoff: 9 Volts. (nominal)
- PC Board Size: 2.25" X 2.5" (57.15mm X 63.5mm)
- Standby Battery Charging Capacity: 1 to 12 Ah, Sealed Lead Acid
- Battery Wire Length: 16" with F1-Faston No. 187 Receptacles
- Operating Temp: 32°to 120°F (0°to 48°C)
- Humidity: 95% RH (max.), non-condensing
- Features: Master Power Switch turns On/Off the DC Input and Battery
- Warranty: Limited Lifetime
