Elk Mini Door/Window Mini Sensor


IN STOCK! Ships same business day if ordered before 3pm PT

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Product Description

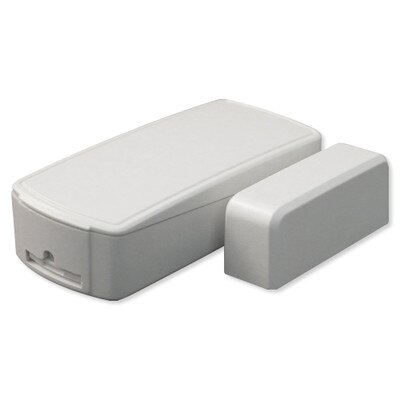

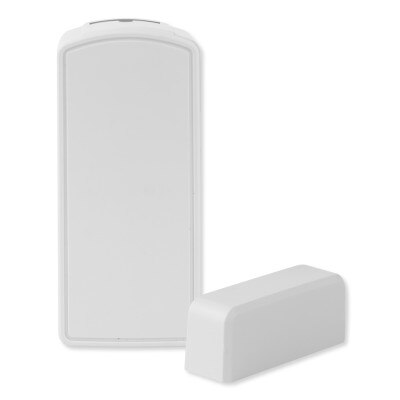

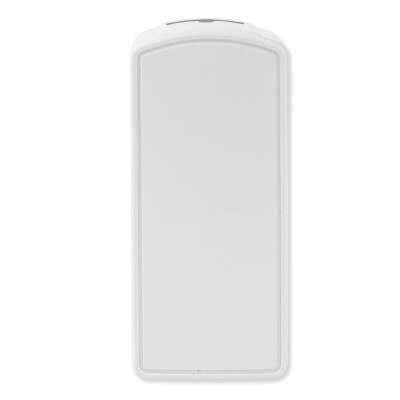

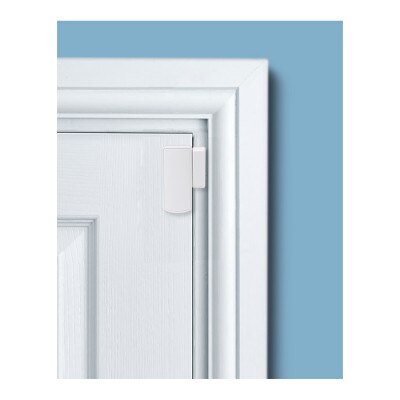

The ELK Mini Door & Window Sensor is a wireless Door Sensor that detects the opening and closing of doors, windows, and other open/close objects. The sensor mounts on both the open/close object and the objects frame, sending alert signals when the object is opened or closed.

This sensor is compatible with Elk's 319MHz Receivers/Panels as well as other panels that communicate using the 319.5MHz Frequency and the ITI/Interlogix protocol.

  • Small, low profile design
  • Long range and battery life
  • Transmits open/close, tamper, low battery, and supervisory signals

In The Box:

  • Door/Window Sensor & Magnet
  • (2) CR2032 Batteries
  • Double Sided Mounting Tape
  • Mounting Screws
  • Instructions

Tech Specs

  • Part Number: ELK-319DWM
  • RF frequency: 319.5 MHz
  • Compatibility: ELK-319 Receivers/Panels & other panels that operate on the 319.5MHz Freq. and adhere to the ITI/Interlogix protocol
  • Battery Type: Two (2) CR2032 3VDC lithium coin-cell
  • Operating Temp Range: 32 to 120°F (0 to 49°C)
  • Storage Temp Range: -30 to 140°F (-34 to 60°C)
  • Relative Humidity: 95% non-condensing
  • Dimensions: 2.25" L x .1.0 x 0.50" in. (L x W x D)
  • Warranty: 2 Years

Product Docs
