Elk Recessed Door Sensor


IN STOCK! Ships same business day if ordered before 3pm PT

WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

Pay in 4 interest-free payments. Learn More.

Product Description

The Elk Recessed Door Sensor is a recessed wireless door sensor designed for discreet entry monitoring for select doorways. The sensor mounts on the inside edge of a door frame and is virtually invisible when the door is closed.

This sensor is compatible with Elk's 319MHz Receivers/Panels as well as other panels that communicate using the 319.5MHz Frequency and adhere to the ITI/Interlogix protocol.

  • Long range and battery life
  • Transmits open/close, tamper, low battery, and supervisory signals

In The Box:

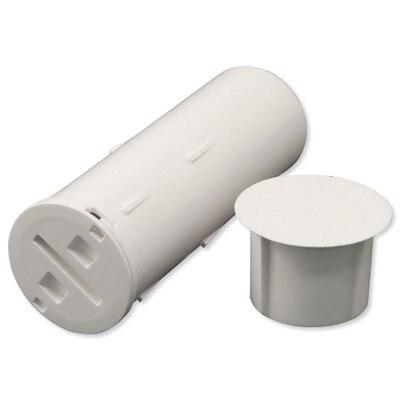

  • Recessed Door Sensor & Magnet
  • (1) CR2 Battery
  • Instructions

Tech Specs

  • Part Number: ELK-319DR
  • RF frequency: 319.5 MHz
  • Compatibility: ELK-319 Receivers/Panels & other panels that operate on the 319.5MHz Freq. and adhere to the ITI/Interlogix protocol
  • Battery Type: 3VDC "CR2" lithium
  • Operating Temp Range: -40 to 140°F (-40 to 60°C)
  • Storage Temp Range: -30 to 140°F (-34 to 60°C)
  • Relative Humidity: 95% non-condensing
  • Dimensions: 2.25" L x .75" D
  • Warranty: 2 Years
