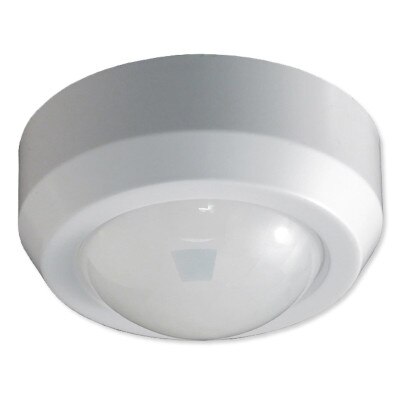

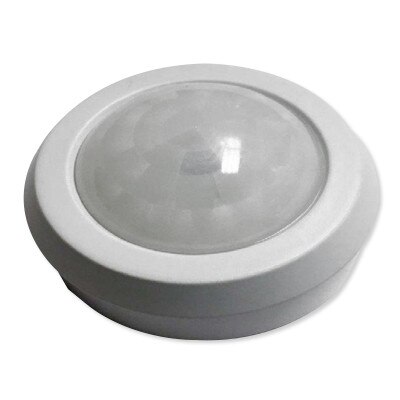

ELK Wireless PIR Motion Sensor, Ceiling Mount, 319.5 MHz

$78.09
SKU: ELK319PIRC

Order now and we'll ship usually within 3-5 business days.

WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

Product Description

The Elk Wireless PIR Motion Sensor, Ceiling Mount, 319.5 MHz, detects movement within a specific area by sensing the infrared energy emitted from a body as it moves across the sensor field of view. This supervised motion sensor features selectable sensitivity and a built-in tamper switch. Utilizing the 319.5 MHz operating frequency, the ELK-319PIRC is compatible with many popular systems, including ELK's M1 Controls. This ceiling-mount wireless motion sensor, along with ELK's full line of 319.5 Mhz wireless sensors, is ideal for existing Interlogix systems in need of replacement sensors.

  • Designed for wall mount applications
  • Detection area up to 40 feet
  • 319.5 MHz operating frequency
  • Compatible with many popular systems, including M1 Controls
  • Ideal for existing Interlogix systems in need of replacement sensors

Why You Would Use This Product:

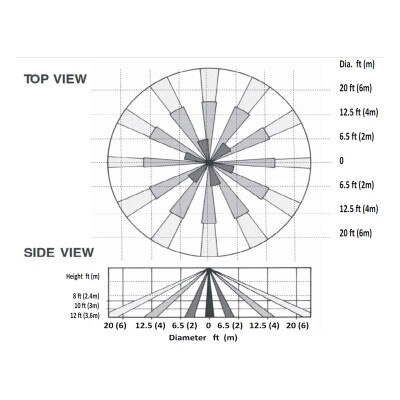

The Elk Wireless PIR Motion Sensor, Wall Mounted, 319.5 MHz, is ideal for ceiling-mount applications. Install it in your home or office to add another layer of security. Connect it to your smart automation system (319.5 MHz operating frequency) so that you can incorporate it within special scenes, such as turning on smart lights or sounding the alarm when movement is detected. With a detection area coverage of 14-40 feet, it can be installed on a ceiling that is 12 feet high for maximum coverage.

In The Box:

  • Elk Wireless PIR Motion Sensor
  • Mounting Hardware
  • CR123 Battery
  • Instructions

Tech Specs

  • Part Number: ELK-319PIRC
  • UPC: 762158190087
  • RF frequency: 319.5 MHz
  • Compatibility: ELK-319 Receivers/Panels & other panels that operate on the 319.5MHz Freq. and adhere to the ITI/Interlogix protocol
  • Battery Type: Two (2) 3VDC lithium battery (Panasonic CR123)
  • Tamper Switch: Sealed dome-contact
  • Sensitivity: Selectable 2 event or 3 event
  • Operating Temp: -40 to 131°F (0 to 49°C)
  • Storage Temp: -30 to 140°F (-34 to 60°C)
  • Max. Humidity: 90% Relative Humidity non-condensing
  • Dimensions: 2.95" Diameter x 1.39" depth
  • Certifications:
    • FCC ID: 2ABBZ-RF-CPIR
    • IC: 11817A-RFCPIR
  • Warranty: 2-Year Limited

Product Docs
