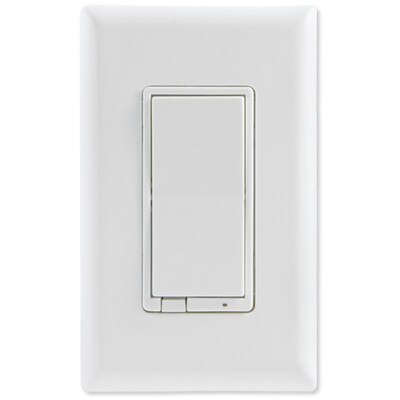

Enbrighten Z-Wave Plus In-Wall Smart Fan Control, Gen5, White

SKU: JA55258

IN STOCK! Ships same business day if ordered before 3pm PT

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Product Description

The Enbrighten Z-Wave Plus In-Wall Smart Fan Control, White replaces a standard in-wall switch to add Z-Wave Plus remote controls to up to two connected fans in your home. The smart switch allows for local and remote On/Off and three-speed control over connected fans.


  • Smart fan switch with 3-speed and On/Off fan control locally & with Z-Wave controller
  • Support multi-way installations with up to 4 Enbrighten switches and 2 identical fans
  • LED indicates fan speed and points out the switch in the dark
  • Inclusion into Z-Wave automation scenes or scheduled events
  • Z-Wave signal repeater extends Z-Wave network up to 150ft line of sight
  • Screw terminal installation enables improved space efficiency

NOTES: Controls fan motors only. For use only with split-capacitor or shaded-pole ceiling fan motors. Requires a Z-Wave network controller for remote control. Wallplate not included. Not rated for outdoor use.

Tech Specs

  • Part Number: 55258
  • UPC: 030878552585
  • Color: White
  • Size: 1-Gang
  • Power: 120 VAC, 60Hz
  • Protocol: Z-Wave Plus
  • Frequency: 908.4/916 MHz
  • Max Load: 2.5 Amps for no more than two identical fans connected to the switch
  • Range: Up to 150 feet line of sight between the Wireless Controller and the closest Z-Wave receiver module.
  • Environmental Conditions: For indoor use only
  • Operating Temperature: 32-104° F (0-40° C)
  • Approvals: UL/cUL Listed. Complies with FCC and Industry Canada regulations.
