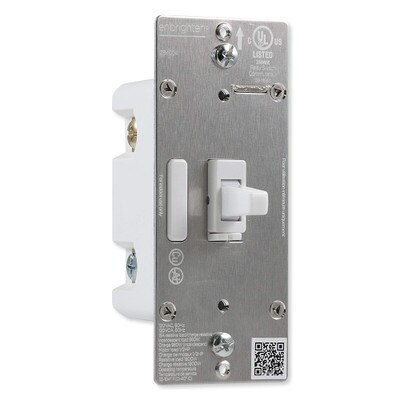

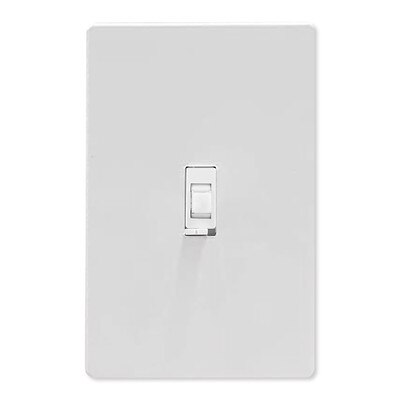

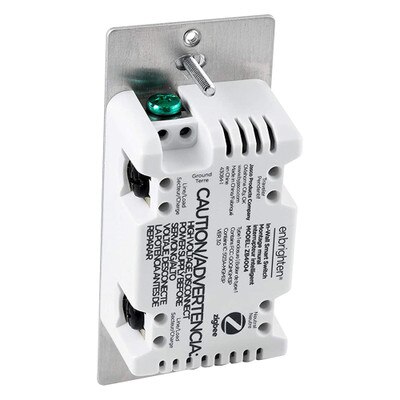

Enbrighten Zigbee 3.0 In-Wall Smart Toggle Dimmer With QuickFit And SimpleWire

$49.92
SKU: JA43090

Order now and we'll ship usually within 3-5 business days.

WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

Product Description

The Enbrighten Zigbee In-Wall Smart Toggle Dimmer with QuickFit™ and SimpleWire™, White replaces a standard in-wall switch to add Zigbee Dim/Brighten control over lighting and On/Off remote control over appliances. Wirelessly control connected lights and appliances and schedule automated events or scenes to simplify home living. This switch can work directly with select Amazon Echo devices without needing to connect to a Zigbee hub.

  • Dimmer switch supports remote control over incandescent, halogen, LEDs, CFLs, fans, and other devices
  • Google Assistant and Amazon Alexa compatible with a compatible hub
  • Supports direct connection with Amazon Echo products without requiring a Zigbee compatible hub
  • Wirelessly control Dim/Brighten/On/Off functions up to 150 feet away with your mobile device or computer using any Zigbee certified gateway
  • QuickFit design reduces the housing depth by up to 20 percent compared to previous Zigbee models and eliminates the need for heat tabs
  • SimpleWire features enable fast and easy installation by detecting line and load wires and configuring the dimmer accordingly
  • Dual ground ports support daisy-chaining in multi-switch setups

NOTES: For indoor use only. Direct voice command control compatible only with select Amazon Echo products. A compatible Zigbee hub is required for non-voice controlled automated functions. Wallplate not included. Uses standard single-gang wallplate. The switch is designed only for use with permanently installed fixtures.

Tech Specs

  • Part Number: 43090
  • UPC: 030878430906
  • Color: White
  • Size: 1-Gang
  • Power: 120 VAC, 60 Hz
  • Frequency: 2.4Ghz IEEE 802.15.4
  • Max Load Ratings:
    • 1-Gang: 600W
    • 2-Gang: 500W
    • 3-Gang: 400W incandescent; 300W CFL/LED
  • Range: Up to 150 feet line of sight between the Wireless Controller and the closest Zigbee receiver module.
  • Environmental Conditions: For indoor use only.
  • Operating Temperature Range: 32 to 104°F (0 to 40°C)
  • Approvals: FCC, IC
  • Warranty: 2 Year Limited

Product Docs
