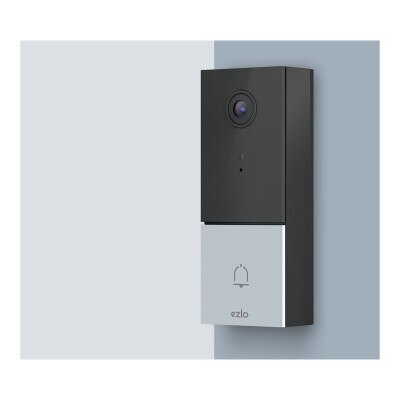

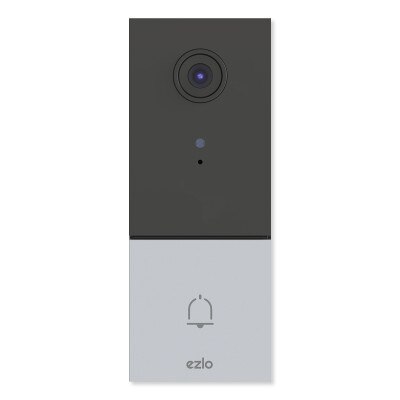

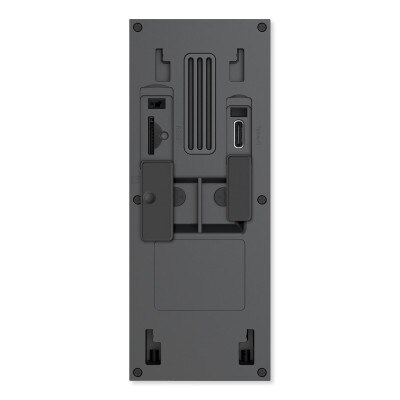

Ezlo VistaCam Video Doorbell 1203 with InstaVue


IN STOCK! Ships same business day if ordered before 3pm PT

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Product Description

Upgrade your doorbell or video doorbell camera by replacing it with the Ezlo VistaCam Video Doorbell 1203 with InstaVue. This HD video doorbell features a 2K 4MP camera features 2560 x 1440 resolution at 25fps, combined with HDR and distortion correction, wide-angle adjustable lens, and night vision capabilities helps to keep everything in focus. In addition, lightning-fast video replay that lets you review footage in under 2 seconds. The HD camera also features a built-in motion sensor and 2-way audio that enable automatic recording when motion or sound is detected as well as communication with guests. Recorded footage can be reviewed anywhere on a connected smartphone, tablet or browser via the Vera mobile app.


  • InstaVue presents lightning- fast video replay on both local and remote connections
  • Ultra-crisp 2K@25fps images during the day, super-clear night vision images up to 16 feet
  • Wide angle lens provides expansive 170° coverage
  • Adjustable camera angle up to 15° for an enhanced entryway view
  • 2-Way Audio with built-in mic and speaker
  • Powered by your existing doorbell circuit
  • Quick, easy installation using existing mechanical and electronic digital chimes
  • Connects to the Internet via Ethernet or 2.4GHz and 5GHz Wi-Fi networks
  • Anti-theft Design
  • Motion Detection and Adjustable Detection Sensitivity
  • Compatible with Amazon Alexa or Google Assistant

In The Box:

  • VistaCam 1203
  • Drilling Template
  • Power Adapter Kit
  • Type-C USB Cable
  • 4 x Mounting Brackets
  • 3 x Sets of Mounting Screw
  • Screwdriver
  • Wire Extenders
  • Wire Nuts
  • Mounting Seal
  • Quick Start Guide

NOTE: Internet connection required. Compatible with Ezlo Plus and Ezlo Secure only. Not compatible with Vera controllers, Ezlo Atom, or Ezlo PlugHub.

Tech Specs

  • Part Number: VC1203
  • UPC: 850010800172

Network Connections

  • Ethernet: Transfer via Type C to RJ45
  • Protocols: IP, TCP, UDP, SMTP, FTP, RTSP
  • Wireless Security: WPA, WPA2
  • Wireless Standard: 2.4GHz and 5GHz


  • Image Resolution: 2560 x 1440
  • Video Backup Storage: Supports up to 128GB Micro SD card
  • Frame Rate: 25fps
  • Compression: H.265/H.264
  • 4M pixel Image Iensor: High Definition Color CMOS


  • Motion, Sound and Face Detection: Recording triggered by motion sensor
  • Night Vision: Range up to 16 feet
  • Minimum Illumination: N/A (Without IR Illuminator)
  • Image Settings: Adjust hue, brightness, contrast, saturation, sharpness
  • Lens: F2.2 aperture
  • Angle of View: Diagonal:170°, horizontal:152°, vertical: 91°


  • 2-Way Audio: Built-in mic and speaker support full duplex, real-time 2-way audio


  • Power Supply: AC8~24V or DC5~30V


  • Storage Temperature Range: -4° – 140°F (-20°C to 60°C)
  • Operating Temperature: -4°F to 122°F (-20°C to 50°C)
  • Operating Humidity: 20% to 85% non-condensing
  • Certifications: FC, CE, RoHS
  • Warranty: 1 Year
