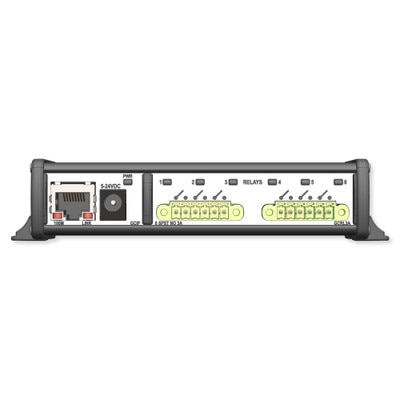

Global Cache Global Connect, GC3 w/ CC Relays

$215.50
Item # GC3NERT

Order now and we'll ship usually within 3-5 business days.

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Built with performance, flexibility, and empowering in mind, Global Connect's design is based on open systems to work with any control software or hardware, delivering a simple cost-effective way to extend the reach of any control system. Global Connect is the next generation for IP connectivity and control. The Global Connect is comprised of three elements: the chassis, the number of slots per chassis, and installed modules. The Global Caché Global Connect GC3 with CC Relays includes 6 contact closure relays and a free-standing chassis (3 slot, 4.5").

6 Contact Closure Relays

  • External devices are connected via 1x6 push-release terminal blocks
  • Simple dry contact triggers a relay event by controlling power delivery to voltage or contact inputs
  • To switch a relay, press the desired ports toggle to turn it On or Off and the relay will change to the set state

The Global Connect uses an online web tool to configure settings for each installed module. Download and run Global Caché's iHelp program to configure the Global Connect. The program will detect the individual IP addresses for each of the modules installed. Select the module you wish to adjust settings for and apply the relevant changes.

In The Box:

  • CC Relays
  • 3 Slot, 4.5-Inch Freestanding Chassis
  • Manual

Available for sale only in the U.S.

  • Part Number: GC3/NE/RT
  • Ports: 6 x SPST Relays
  • Maximum Rating: 250V AC, 30V DC, or 6 Amps
  • Compatible Wire Gauges (Connector): 14-30 AWG
  • Relay Type: Normally Open (NO)
  • Certifications: Tested to CE, FCC, CTick, RoHS
  • Warranty: 2-Year Limited
  • Technical Features:
    • 3 amps, 250vAC or 30vDC
    • Requires 2 module slots

Single Ethernet Network Module

  • Network Connector: RJ45
  • Network Speed: 100Mbps, Full Duplex
  • Power Connector: Barrel Jack: 5.5mm x 2.1mm (Center Positive)
  • Power Input: Range: 5V-24V
