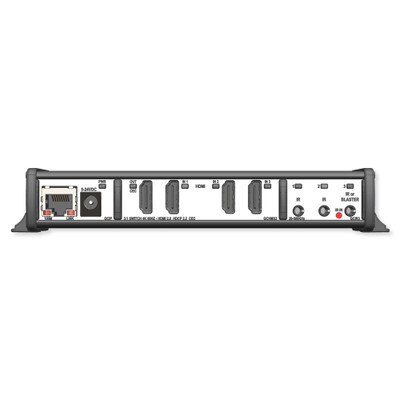

Global Cache Global Connect, GC4 w/ HDMI Switch, IR Port
Product Description
Built with performance, flexibility, and empowering in mind, Global Connect's design is based on open systems to work with any control software or hardware, delivering a simple cost-effective way to extend the reach of any control system. The Global Caché Global Connect, GC4 with HDMI Switch & IR Port includes 3 HDMI inputs and 3 emitter IR ports/sensor inputs.
3 Input: 1 Output HDMI Switch:
- Switches between 3 sources and 1 output at resolutions up to UHD 4K at 60Hz
- Detects the On/Off/Standby status of connected HDMI devices
- Includes HDMI-CEC (Consumer Electronic Control) which provides easy command and control of devices connected through HDMI
- Supports HDCP 2.2 (High-bandwidth Digital Content Protection) devices
3 IR Emitters/ 1 IR Blaster Cable:
- Includes three 3.5mm stereo jack ports acting as independent IR outputs or sensor inputs
- Each IR emitter has a range of 1 inch (2.5 cm) and must be placed directly on top of the IR receiver of the controlled device
- IR blaster transmits up to 35 feet (10 meters)
- Includes built in IR learning
The Global Connect uses an online web tool to configure settings for each installed module. Download and run Global Caché's iHelp program to configure the Global Connect. The program will detect the individual IP addresses for each of the modules installed. Select the module you wish to adjust settings for and apply the relevant changes.
In The Box:
- HDMI Switch
- 3 Emitter IR Ports/Sensor Inputs
- 4 Slot, 6-Inch Freestanding Chassis
- Manual
Available for sale only in the U.S.
Tech Specs
- Part Number: GC4/NE/HM/IR
Single Ethernet Network Module
- Network Connector: RJ45
- Network Speed: 100Mbps, Full Duplex
- Power Connector: Barrel Jack: 5.5mm x 2.1mm (Center Positive)
- Power Input: Range: 5V-24V
HDMI 3:1 Switch Module
- Ports: 3 Inputs, 1 Output
- Data Bandwidth: 18Gbps
- 4K Resolutions:
- UHD 4K 60Hz, 4:4:4 8 bit
- UHD 4K 60Hz, 4:2:2 8 bit|10 bit|12 bit
- UHD 4K 60Hz, 4:2:0 8 bit|10 bit|12 bit
- Certifications: Tested to CE, FCC, CTick, RoHS
- Warranty: 2-Year Limited
- Technical Features:
- Integrated web server for easy configuration
- CEC injection and CEC snooping
- HDCP 2.2
- 3:1 HDMI switching
- Supports 18Gbps, including UHD 4K 4:4:4@60fps 8bit or 4K 4:2:0@60fps 16bit
- Network controlled switching
- HDMI cable from Raspberry Pi to the front panel included
- Support available via phone, email, and portal
3 Emitter IR Ports/Sensor Inputs
- Ports: 3 x IR Outputs/Sensor Inputs
- Included Cables: 3 x IR Emitters, 1 x IR Blaster
- IR Output Frequency: 20KHz – 500KHz
- IR Learner Frequency: 20KHz – 200KHz
- Chassis Slot Occupied: 2
- Certifications: Tested to CE, FCC, CTick, RoHS
- Warranty: 2-Year Limited
- Technical Features:
- Individual IP address for true IoT
- Integrated web server for easy configuration
- Downloads iLearn software facilitates capture and playback of IR commands
- Includes 3 IR emitters and 1 IR blaster
- LEDs to indicate IR/sensor port activity
- Requires 1 module slot
- Blaster support on IR port 3
- Supports Global Caché' video (IT-SV1), voltage (ITSP1), and contact closure (IT-SC1) sensors
- Support Available via phone, email, and portal
