Global Cache Global Connect, GC5 w/ HDMI Switch, Serial x2

$359.00
Item # GC5NEHM2SL

Order now and we'll ship usually within 3-5 business days.

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

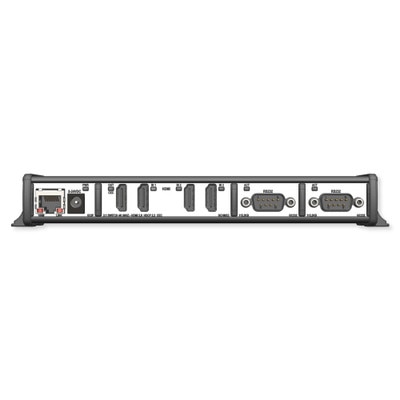

Built with performance, flexibility, and empowering in mind, Global Connect's design is based on open systems to work with any control software or hardware, delivering a simple cost-effective way to extend the reach of any control system. Global Connect is the next generation for IP connectivity and control. The Global Connect is comprised of three elements: the chassis, the number of slots per chassis, and installed modules. The Global Caché Global Connect GC5 with HDMI Switch & 2 Serial includes 3 HDMI inputs and 2 RS232 serial ports.

3 Input: 1 Output HDMI Switch

  • Switches between 3 sources and 1 output at resolutions up to UHD 4K at 60Hz
  • Detects the On/Off/Standby status of connected HDMI devices
  • Includes HDMI-CEC (Consumer Electronic Control) which provides easy command and control of devices connected through HDMI
  • Supports HDCP 2.2 (High-bandwidth Digital Content Protection) devices

Bi-directional Serial RS232

  • Connects RS232 devices to the network and other serial devices
  • Each RS232 interface includes a male DTE (Data Terminal Equipment) DB9 connector

The Global Connect uses an online web tool to configure settings for each installed module. Download and run Global Caché's iHelp program to configure the Global Connect. The program will detect the individual IP addresses for each of the modules installed. Select the module you wish to adjust settings for and apply the relevant changes.

In The Box:

  • HDMI Switch
  • RS232 DB9 Connector
  • 5 Slot, 7.5-Inch Freestanding Chassis
  • Manual

Available for sale only in the U.S.

  • Part Number: GC5/NE/HM/2SL

Single Ethernet Network Module

  • Network Connector: RJ45
  • Network Speed: 100Mbps, Full Duplex
  • Power Connector: Barrel Jack: 5.5mm x 2.1mm (Center Positive)
  • Power Input: Range: 5V-24V

Serial RS232 Bi-directional

  • Ports: 1 x Male DB9
  • Baud Rate: 300-115200 baud
  • Flow Control: Hardware, None
  • Parity: None, Even, or Odd
  • Data Bits: 8
  • Stop Bits: 1, or 2
  • Certifications: Tested to CE, FCC, CTick, RoHS
  • Warranty: 2-Year Limited
  • Technical Features:
    • 300 baud to 115.2 Kbaud data rates supported Odd, Even, and None parity settings
    • TCP and HTTP API (Restful)
    • Integrated web server for easy configuration
    • Requires 1 GC Chassis slot
    • Support Available via phone, email, and portal

HDMI 3:1 Switch Module

  • Ports: 3 Inputs, 1 Output
  • Data Bandwidth: 18Gbps
  • 4K Resolutions:
    • UHD 4K 60Hz, 4:4:4 8 bit
    • UHD 4K 60Hz, 4:2:2 8 bit|10 bit|12 bit
    • UHD 4K 60Hz, 4:2:0 8 bit|10 bit|12 bit
  • Certifications: Tested to CE, FCC, CTick, RoHS
  • Warranty: 2-Year Limited
  • Technical Features:
    • Integrated web server for easy configuration
    • CEC injection and CEC snooping
    • HDCP 2.2
    • 3:1 HDMI switching
    • Supports 18Gbps, including UHD 4K 4:4:4@60fps 8bit or 4K 4:2:0@60fps 16bit
    • Network controlled switching
    • HDMI cable from Raspberry Pi to the front panel included
    • Support available via phone, email, and portal
