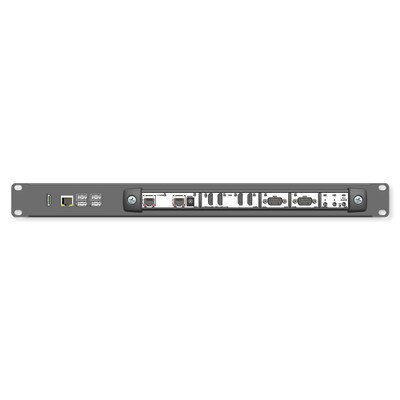

Global Cache Global Connect, RPI w/ Raspberry Pi, PoE, HDMI Switch, Serial x2, IR Port

$863.50
SKU: GCRPINSHM2SLIR

Order now and we'll ship usually within 3-5 business days.

WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

Product Description

The modular Global Caché Global Connect is the newest high performance family of connectivity products. Global Connect is the next generation for IP connectivity and control. The Global Connect is comprised of three elements: the chassis, the number of slots per chassis, and installed modules. Global Connect features individual IP addresses for each module with individual web pages for easy configuration, advanced addressability, and backward compatibility to current Global Caché hardware.

The Global Connect uses an online web tool to configure settings for each installed module. Download and run Global Caché's iHelp program to configure the Global Connect. The program will detect the individual IP addresses for each of the modules installed. Select the module you wish to adjust settings for and apply the relevant changes.

This Global Connect RPI Model includes a Raspberry Pi computer, PoE connection, and HDMI, (2) Serial, and IR Modules.

Raspberry Pi:

The Raspberry Pi is a single board computer that provides unlimited opportunities for control and automation, including resident control software, hub software for cloud-based software and/or voice controlled user interfaces,video streaming, and more. The Raspberry Pi comes pre-equipped with Wi-Fi and Bluetooth compatibility and pre-compiled Linux images to configure powerful support for existing or new software programs connected to your home network.

3 Input: 1 Output HDMI Switch:

  • Switches between 3 sources and 1 output at resolutions up to UHD 4K at 60Hz
  • Detects the On/Off/Standby status of connected HDMI devices
  • Includes HDMI-CEC (Consumer Electronic Control) which provides easy command and control of devices connected through HDMI
  • Supports HDCP 2.2 (High-bandwidth Digital Content Protection) devices

Bi-directional Serial RS232:

  • Connects RS232 devices to the network and other serial devices
  • Each RS232 interface includes a male DTE (Data Terminal Equipment) DB9 connector

3 IR Emitters/ 1 IR Blaster Cable:

  • Includes three 3.5mm stereo jack ports acting as independent IR outputs or 3 sensor inputs
  • Each IR emitter has a range of 1 inch (2.5 cm) and must be placed directly on top of the IR receiver of the controlled device
  • IR blaster transmits up to 35 feet (10 meters)
  • Includes built in IR learning

In The Box:

  • Global Connect
  • Power Supply
  • microSD card, 8G
  • Mounting Hardware

Available for sale only in the U.S.

Tech Specs

  • Part Number: RPI/NS/HM/2SL/IR

Raspberry Pi

  • Rack Accessible Ports:
    • 1 x RJ45 Ethernet
    • 4 x USB 2.0 Ports
    • 1 x Full-size HDMI
  • Other Ports:
    • 1 x GPIO Header
    • 1 x CSI Camera Port
    • 1 x DSI Display Port
    • 1 x 4-Pole Stereo Output and Composite Video Port
    • 1 x Micro SD Port
    • Built in WiFi and Bluetooth

Dual Ethernet Network Module

  • Network Connector: 2 x RJ45
  • Network Speed: 100Mbps, Full Duplex
  • Power Connector: Barrel Jack: 5.5mm x 2.1mm (Center Positive)
  • Power Input: Range: 5V-24V
  • Power over Ethernet (PoE) capability (GCSW-P only): 802.3af Powered Device (PD)
  • Chassis Slots Occupied: 2

HDMI 3:1 Switch Module

  • Ports: 3 Inputs, 1 Output
  • Data Bandwidth: 18Gbps
  • 4K Resolutions:
    • UHD 4K 60Hz, 4:4:4 8 bit
    • UHD 4K 60Hz, 4:2:2 8 bit|10 bit|12 bit
    • UHD 4K 60Hz, 4:2:0 8 bit|10 bit|12 bit
  • Chassis Slots Occupied: 2

3 IR Emitters/ 1 IR Blaster Cable

  • Ports: 3 x IR Outputs/Sensor Inputs
  • Included Cables: 3 x IR Emitters, 1 x IR Blaster
  • IR Output Frequency: 20KHz – 500KHz
  • IR Learner Frequency: 20KHz – 200KHz
  • Chassis Slot Occupied: 2

Serial RS232 Bi-directional

  • Ports: 1 x Male DB9
  • Baud Rate: 300-115200 baud
  • Flow Control: Hardware, None
  • Parity: None, Even, or Odd
  • Data Bits: 8
  • Stop Bits: 1, or 2
  • Certifications: CE, FCC, CTick, RoHS
  • Warranty: 1 Year
