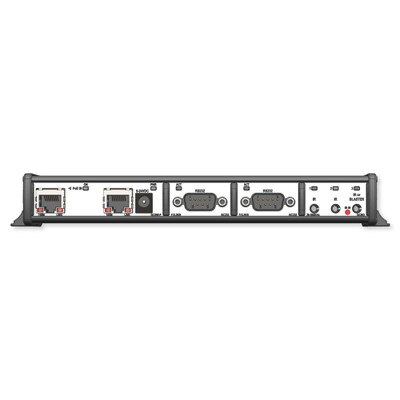

Global Cache Global Connect, GC5 w/ PoE, Serial x2, IR Port

$359.00
SKU: GC5NS2SLIR

Order now and we'll ship usually within 3-5 business days.

WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

Product Description

Built with performance, flexibility, and empowering in mind, Global Connect's design is based on open systems to work with any control software or hardware, delivering a simple cost-effective way to extend the reach of any control system. Global Connect is the next generation for IP connectivity and control. The Global Connect is comprised of three elements: the chassis, the number of slots per chassis, and installed modules. The Global Caché Global Connect, GC5 with PoE, 2 Serial, IR Port includes 3 emitter IR ports/sensor inputs and 2 RS232 serial ports with PoE connectivity.

Bi-directional Serial RS232:

  • Connects RS232 devices to the network and other serial devices
  • Each RS232 interface includes a male DTE (Data Terminal Equipment) DB9 connector

3 IR Emitters/ 1 IR Blaster Cable:

  • Includes three 3.5mm stereo jack ports acting as independent IR outputs or sensor inputs
  • Each IR emitter has a range of 1 inch (2.5 cm) and must be placed directly on top of the IR receiver of the controlled device
  • IR blaster transmits up to 35 feet (10 meters)
  • Includes built in IR learning

The Global Connect uses an online web tool to configure settings for each installed module. Download and run Global Caché's iHelp program to configure the Global Connect. The program will detect the individual IP addresses for each of the modules installed. Select the module you wish to adjust settings for and apply the relevant changes.

In The Box:

  • RS232 DB9 Connector
  • 3 Emitter IR Ports/Sensor Inputs
  • 5 Slot, 7.5-Inch Freestanding Chassis
  • Manual

Available for sale only in the U.S.

Tech Specs

  • Part Number: GC5/NS/2SL/IR
  • Power:
    • PoE (Power Over Ethernet)
    • 5-24VDC power supply

Dual Ethernet Network Module

  • Network Connector: 2 x RJ45
  • Network Speed: 100Mbps, Full Duplex
  • Power Connector: Barrel Jack: 5.5mm x 2.1mm (Center Positive)
  • Power Input: Range: 5V-24V
  • Power over Ethernet (PoE) capability (GCSW-P only): 802.3af Powered Device (PD)
  • Chassis Slots Occupied: 2

Serial RS232 Bi-directional

  • Ports: 1 x Male DB9
  • Baud Rate: 300-115200 baud
  • Flow Control: Hardware, None
  • Parity: None, Even, or Odd
  • Data Bits: 8
  • Stop Bits: 1, or 2
  • Certifications: Tested to CE, FCC, CTick, RoHS
  • Warranty: 2-Year Limited
  • Technical Features:
    • 300 baud to 115.2 Kbaud data rates supported Odd, Even, and None parity settings
    • TCP and HTTP API (Restful)
    • Integrated web server for easy configuration
    • Requires 1 GC Chassis slot
    • Support Available via phone, email, and portal

3 Emitter IR Ports/Sensor Inputs

  • Ports: 3 x IR Outputs/Sensor Inputs
  • Included Cables: 3 x IR Emitters, 1 x IR Blaster
  • IR Output Frequency: 20KHz – 500KHz
  • IR Learner Frequency: 20KHz – 200KHz
  • Chassis Slot Occupied: 2
  • Certifications: Tested to CE, FCC, CTick, RoHS
  • Warranty: 2-Year Limited
  • Technical Features:
    • Individual IP address for true IoT
    • Integrated web server for easy configuration
    • Downloads iLearn software facilitates capture and playback of IR commands
    • Includes 3 IR emitters and 1 IR blaster
    • LEDs to indicate IR/sensor port activity
    • Requires 1 module slot
    • Blaster support on IR port 3
    • Supports Global Caché' video (IT-SV1), voltage (ITSP1), and contact closure (IT-SC1) sensors
    • Support Available via phone, email, and portal
