Global Cache Global Connect, GC5 w/ Serial, IR Port, CC Relays
Product Description

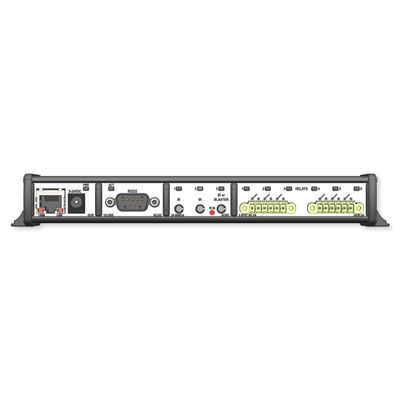

Built with performance, flexibility, and empowering in mind, Global Connect's design is based on open systems to work with any control software or hardware, delivering a simple cost-effective way to extend the reach of any control system. Global Connect is the next generation for IP connectivity and control. The Global Connect is comprised of three elements: the chassis, the number of slots per chassis, and installed modules. The Global Caché Global Connect, GC5 with Serial, IR Port, CC Relays includes an RS232 serial port, 3 emitter IR ports/sensor inputs, and 6 contact closure relays.
Bi-directional Serial RS232:
- Connects RS232 devices to the network and other serial devices
- Each RS232 interface includes a male DTE (Data Terminal Equipment) DB9 connector
3 IR Emitters/ 1 IR Blaster Cable:
- Includes three 3.5mm stereo jack ports acting as independent IR outputs or sensor inputs
- Each IR emitter has a range of 1 inch (2.5 cm) and must be placed directly on top of the IR receiver of the controlled device
- IR blaster transmits up to 35 feet (10 meters)
- Includes built in IR learning
6 Contact Closure Relays:
- External devices are connected via 1x6 push-release terminal blocks
- Simple dry contact triggers a relay event by controlling power delivery to voltage or contact inputs
- To switch a relay, press the desired ports toggle to turn it On or Off and the relay will change to the set state
The Global Connect uses an online web tool to configure settings for each installed module. Download and run Global Caché's iHelp program to configure the Global Connect. The program will detect the individual IP addresses for each of the modules installed. Select the module you wish to adjust settings for and apply the relevant changes.
In The Box:
- RS232 DB9 Connector
- 3 Emitter IR Ports/Sensor Inputs
- 6 Contact Closure Relays
- 5 Slot, 7.5-Inch Freestanding Chassis
- Manual
Available for sale only in the U.S.
Tech Specs
- Part Number: GC5/NE/SL/IR/RT
Single Ethernet Network Module
- Network Connector: RJ45
- Network Speed: 100Mbps, Full Duplex
- Power Connector: Barrel Jack: 5.5mm x 2.1mm (Center Positive)
- Power Input: Range: 5V-24V
Serial RS232 Bi-directional
- Ports: 1 x Male DB9
- Baud Rate: 300-115200 baud
- Flow Control: Hardware, None
- Parity: None, Even, or Odd
- Data Bits: 8
- Stop Bits: 1, or 2
- Certifications: Tested to CE, FCC, CTick, RoHS
- Warranty: 2-Year Limited
- Technical Features:
- 300 baud to 115.2 Kbaud data rates supported Odd, Even, and None parity settings
- TCP and HTTP API (Restful)
- Integrated web server for easy configuration
- Requires 1 GC Chassis slot
- Support Available via phone, email, and portal
3 Emitter IR Ports/Sensor Inputs
- Ports: 3 x IR Outputs/Sensor Inputs
- Included Cables: 3 x IR Emitters, 1 x IR Blaster
- IR Output Frequency: 20KHz – 500KHz
- IR Learner Frequency: 20KHz – 200KHz
- Chassis Slot Occupied: 2
- Certifications: Tested to CE, FCC, CTick, RoHS
- Warranty: 2-Year Limited
- Technical Features:
- Individual IP address for true IoT
- Integrated web server for easy configuration
- Downloads iLearn software facilitates capture and playback of IR commands
- Includes 3 IR emitters and 1 IR blaster
- LEDs to indicate IR/sensor port activity
- Requires 1 module slot
- Blaster support on IR port 3
- Supports Global Caché' video (IT-SV1), voltage (ITSP1), and contact closure (IT-SC1) sensors
- Support Available via phone, email, and portal
6 Contact Closure Relays
- Ports: 6 x SPST Relays
- Maximum Rating: 250V AC, 30V DC, or 6 Amps
- Compatible Wire Gauges (Connector): 14-30 AWG
- Relay Type: Normally Open (NO)
- Certifications: Tested to CE, FCC, CTick, RoHS
- Warranty: 2-Year Limited
- Technical Features:
- 3 amps, 250vAC or 30vDC
- Normally Open (NO), single pole single throw (SPST) relays
- Requires 2 module slots
- Support available via phone, email, and portal
