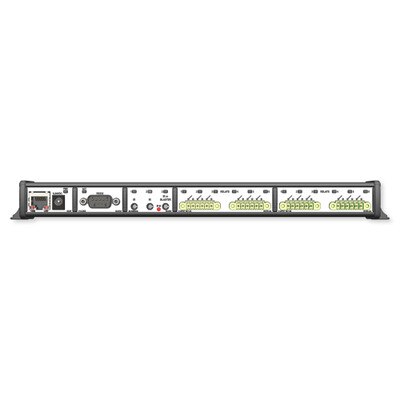

Global Cache Global Connect, GC7 w/ Serial, IR Port, CC Relays x2

$503.50
Item # GC7NESLIR2RT

Order now and we'll ship usually within 3-5 business days.

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

The modular Global Caché Global Connect is the newest high performance family of connectivity products. Global Connect is the next generation for IP connectivity and control. The Global Connect is comprised of three elements: the chassis, the number of slots per chassis, and installed modules. Global Connect features individual IP addresses for each module with individual web pages for easy configuration, advanced addressability, and backward compatibility to current Global Caché hardware.

The Global Connect uses an online web tool to configure settings for each installed module. Download and run Global Caché's iHelp program to configure the Global Connect. The program will detect the individual IP addresses for each of the modules installed. Select the module you wish to adjust settings for and apply the relevant changes.

This Global Connect G7 Model includes Serial, IR, and (2) CC Relay Modules.

Bi-directional Serial RS232

  • Connects RS232 devices to the network and other serial devices
  • Each RS232 interface includes a male DTE (Data Terminal Equipment) DB9 connector

3 IR Emitters/ 1 IR Blaster Cable

  • Includes three 3.5mm stereo jack ports acting as independent IR outputs or 3 sensor inputs
  • Each IR emitter has a range of 1 inch (2.5 cm) and must be placed directly on top of the IR receiver of the controlled device
  • IR blaster transmits up to 35 feet (10 meters)
  • Includes built in IR learning

6 Contact Closure Relays

  • External devices are connected via 1x6 push-release terminal blocks
  • Simple dry contact triggers a relay event by controlling power delivery to voltage or contact inputs
  • To switch a relay, press the desired ports toggle to turn it On or Off and the relay will change to the set state

In The Box:

  • Global Connect
  • Power Supply

Available for sale only in the U.S.

  • Part Number: GC7/NE/SL/IR/2RT

Single Ethernet Network Module

  • Network Connector: RJ45
  • Network Speed: 100Mbps, Full Duplex
  • Power Connector: Barrel Jack: 5.5mm x 2.1mm (Center Positive)
  • Power Input: Range: 5V-24V
  • Chassis Slots Occupied: 1

3 IR Emitters/ 1 IR Blaster Cable

  • Ports: 3 x IR Outputs/Sensor Inputs
  • Included Cables: 3 x IR Emitters, 1 x IR Blaster
  • IR Output Frequency: 20KHz – 500KHz
  • IR Learner Frequency: 20KHz – 200KHz
  • Chassis Slot Occupied: 2

Serial RS232 Bi-directional

  • Ports: 1 x Male DB9
  • Baud Rate: 300-115200 baud
  • Flow Control: Hardware, None
  • Parity: None, Even, or Odd
  • Data Bits: 8
  • Stop Bits: 1, or 2
  • Chassis Slots Occupied: 1

6 Contact Closure Relays

  • Ports: 6 x SPST Relays
  • Maximum Rating: 250V AC, 30V DC, or 6 Amps
  • Compatible Wire Gauges (Connector): 14-30 AWG
  • Relay Type: Normally Open (NO)
  • Chassis Slots Occupied: 2
  • Certifications: CE, FCC, CTick, RoHS
  • Warranty: 1 Year
