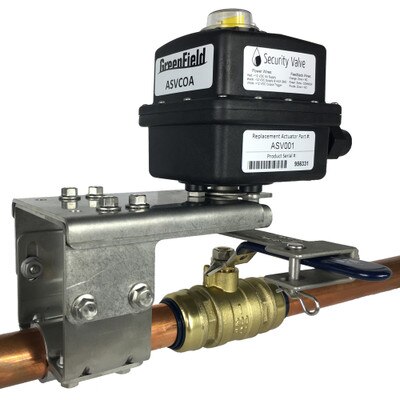

GreenField Automatic Security Valve Clamp-On Actuator


Order now and we'll ship usually within 1-2 business days.

WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

Pay in 4 interest-free payments. Learn More.

Product Description

When connected to a home automation system, the Clamp On Actuator enables remote control for your home's water supply. Designed to help protect your property from water damage and give you added peace of mind, the Actuator also works in conjunction with automation sensors, such as a moisture detector or a water level sensor. As soon as a leak is noticed, the Actuator can be manually operated to turn off your water supply, or if setup with sensors, it can turn off the supply automatically.

  • Opens and closes your home's main water valve quickly for reliable protection
  • Operates existing ball valve that is installed in your home or property
  • Provides feedback when the valve is open or closed
  • Compatible with major brands of automation/security systems
  • Approved for drinking water applications in all 50 states
  • Uses the same actuator as the other Automatic Security Valves
  • Brackets mount to copper pipe only; 3/4" or 1" size
  • DIY easy installation, no plumber required
  • No pressure applied to the current house valve
  • Always good to check Actuator after each open/close operation

The high-torque electric actuator connects to your water supply. Because the rugged actuator is waterproof and weatherproof, it can be installed either indoors or outdoors. This provides 24/7 remote access to the water supply.

In The Box:

  • Clamp-On Actuator
  • Mounting Brackets
  • Mounting Hardware
  • Manual Handle
  • Power Supply

NOTE: This product is only intended for installation on copper piping. Do NOT install on pipe material other than copper.

Tech Specs

  • Part Number: ASVCOA
  • Power Source: 12/24 volt DC or 24 volt AC power supply (included)
  • Input: 100-240V ~50/60Hz 1.0A MAX
  • Output: 18V 2.22A
  • Housing Ratings: NEMA 6P (waterproof); NEMA 7D (ignition proof)
  • Approvals: UL listed
  • Warranty: 1 Year

Product Docs
