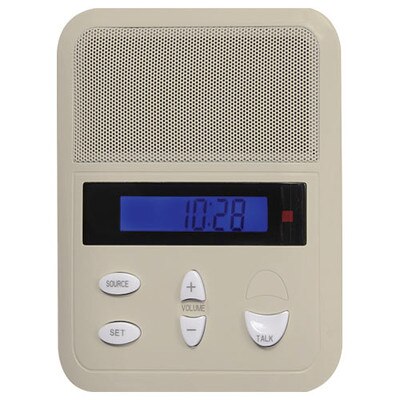

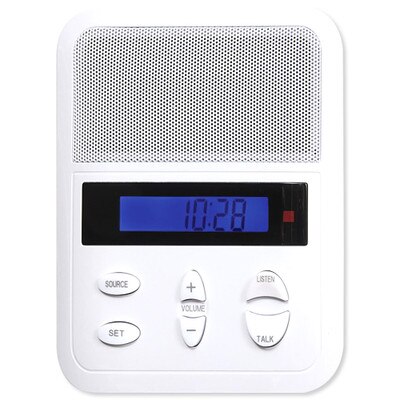

IST I2000 Intercom Patio Station

Weather-resistant station with Room Station functionality designed for outdoor installation in protected areas such as a patio or porch. Outdoor cube or rock speakers can be added.

The I2000P outside station is weather resistant. It is designed to require some protection from the weather. The patio station allows you to play music from the radio, its local line source (3.5mm jack located on the bottom of the room unit) and the auxiliary input wall plate. The system door chime will sound at the patio station so guests will not be missed.

If your IST system is connected to an Amazon Echo or Echo Dot, you can issue voice commands through any Room or Patio station and hear responses and streaming audio through your IST intercoms. Once connected to Alexa, Press Talk on any Room or Patio Station to send voice commands to your Amazon device.

For safety reasons the patio station does not have the unlock feature.

Room, patio, and door units use a standard depth plastic 2-gang box. Typically these units will install 50 inches off the floor. The suggested manufacturer brand of the 2-gang box is Carlon, model B232 series and BH 235 series. Cut a hole in the sheetrock to mount the 2-gang boxes for the room, patio, and door units. Before you mount the 2-gang box feed the Cat5 wiring through the 2-gang box and then mount the 2-gang box.

There are recess and surface mount boxes available for the patio (I2000P), and door (I2000D) stations:

• IPSMB – Patio surface mount box for I2000P
• IPRSB – Patio recessed box for I2000P
• IDSMB – Door surface mount box for I2000D
• IDRSB – Door recessed box for I2000D
