  • IST RETRO Music & Intercom Master Station, Black (Open Box)

IST RETRO Music & Intercom Master Station, Black (Open Box)

$397.00 $657.56

1 available at this price.

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Product Description

The RETRO-M is a Music Distribution and Intercom system that integrates with todays portable music players, with a modern look that compliments any dcor. Its a dual source system which allows you to select between two music sources with intercom capability. Listen to your home entertainment through the auxiliary input throughout your home. The RETRO-M not only allows you to use your portable hand held music players with the system, but also offers you the comfort and convenience of communication and room monitoring. With features like Automatic Selective Call and a full function remote control (at the master only), it is a convenient to use and offers exceptional value.

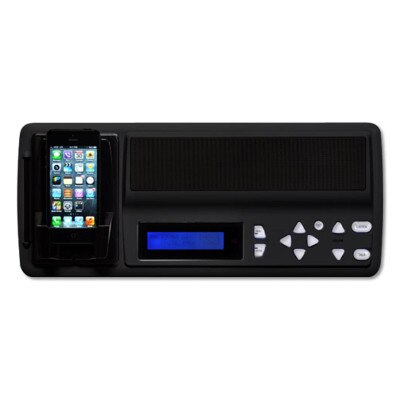

The RETRO-M master unit allows control of the music and intercom functions. It enables you to set the system music and intercom volume levels, bass and treble levels, clock settings, privacy settings and more. The integrated docking station allows you to play any portable music source throughout the system.

Add voice command compatibility with Amazon Alexa to play music or issue voice commands through your IST system. You can connect an Amazon Echo or Echo Dot to the master station via auxiliary cable. Once connected you can issue voice commands directly to your Amazon device or by pressing the Talk button on the master station or any room or patio station. Responses or selected media will be played through your IST intercom system.

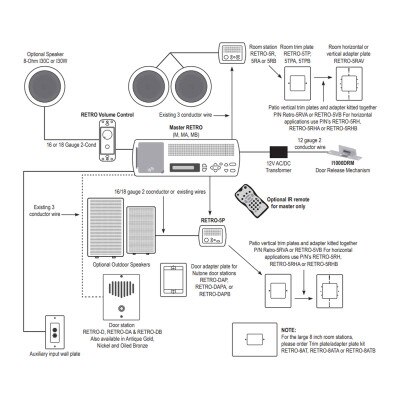

The system will handle the following number of stations:

  • 13 room/patio stations
  • 2 door stations
  • 1 auxiliary input unit

The Intrasonic Technology Retrofit system is designed to work with most existing housings. To determine if you can use the existing wall housing measure the inside height and width of the existing housing. If it measures between 14-1/8 inches to 14-3/8 inches in width and at least 5-3/4 inches high, you should be able to use the existing housing. If you find that you can not use the existing housing, you will need to remove the old housing and install an Intrasonic Technology I2000H Rough-In Kit.

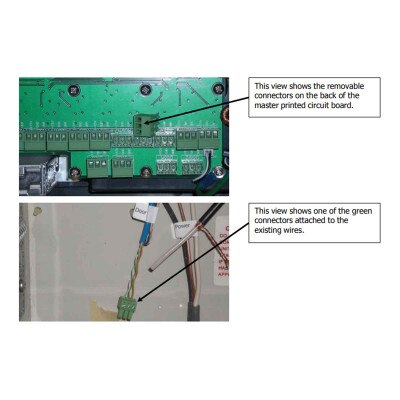

Some old systems have the power coming in to a box that hangs from the bottom of the wall housing that contains one or two transformers. The Intrasonic Technology Retrofit system does not use transformers. You will need to carefully remove these transformers, bring the Romex up into the housing for connection to the Intrasonic Technology master.

NOTE: Do not remove the old transformer housing and if there was a cover you will need to save it. The cover should be replaced once the Romex is wired to the Intrasonic Technology wires. If you are using the original housing, you will need to install the Intrasonic Technology mounting straps. These come with Retrofit RETRO-M master. Be sure to install them with the flat side facing the chassis. As closely as possible mount them with the mounting screw hole centered between the top and bottom. If there are holes available you can use them to screw the mounting straps to the chassis. But be careful not to mount them too far towards the back. The mounting strap needs to be no more than 1/2" from the front end of the chassis. If there are no holes, drill holes to mount the mounting strap.

Tech Specs

  • Part Number: RETRO-M
  • UPC: 856073005226
  • External Speakers Supported: 8-ohm speakers, max. 4 pair (8 total)
  • Master Station Dimensions: 15-1/2(W) x 6-5/8(H) inches
  • Housing Dimensions: 14-1/2 x 5-3/4 x 3-1/4 inches (sold separately)
  • Warranty: 2-Year Limited
