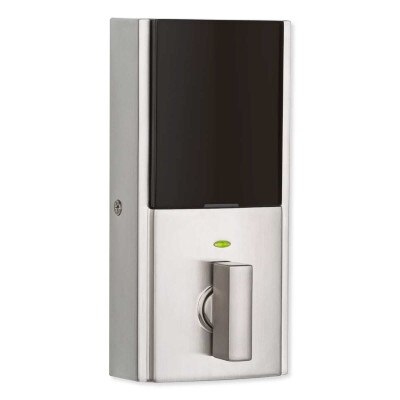

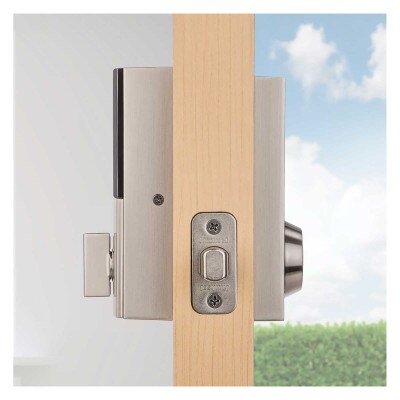

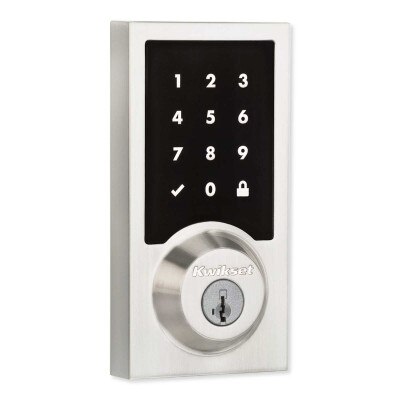

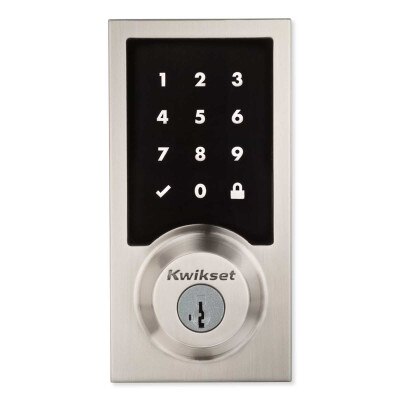

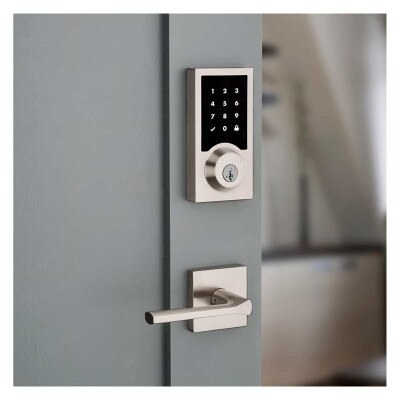

Kwikset SmartCode 916 Z-Wave Plus Contemporary Touchscreen Deadbolt with Home Connect, Gen5
Product Description
The Kwikset SmartCode 916 Z-Wave Plus Contemporary Touchscreen Deadbolt with Home Connect allows your front door to communicate wirelessly to security and home automation systems via Z-Wave technology.
- For use on exterior doors where keyed entry and security is needed
- Capacitive touchscreen smart deadbolt locks/unlocks via keycodes, turnkey, and remote control through compatible mobile apps
- SmartKey Security™ protects against advanced break-in techniques, allows you to rekey your lock in three easy steps, and is compatible with Kwikset (KW1) keyway or (SC1) keyway options
- Home Connect™ technology connects the lock with security and home automation systems using a Z-Wave radio that connects to an in-home hub
- 30 second Auto-Locking feature available
- Keypad stays lit for 5 seconds after inactivity
- Deadbolt Latch is 20 minute fire rated with round corner face
- Latch has adjustable backset 2-3/8" to 2-3/4" to fit all standard door preparations
- Includes round deadbolt strike and 1 inch deadbolt throw
- UL and ANSI/BHMA grade 2 certified
- Requires 4 AA batteries, included
In The Box:
- Z-Wave Plus Contemporary Touchscreen Deadbolt
- Latch and Strike
- 2 x Standard Cut Keys
- Installation Hardware
Tech Specs
- Part Number:
- 99160-041: Satin Nickel
- 99160-042: Venetian Bronze
- 99160-043: Polished Brass
- 99160-044: Matte Black
- Function: Single cylinder deadbolt
- Door Prep: 2-1/8 inches diameter face hole and 1-inch diameter latch hole
- Backset: Adjustable 2-3/8 inches or 2-3/4 inches
- Door Thickness: 1-3/8 to 2 inches automatic adjustment
- Cylinder: SmartKey Re-Key Technology
- Faceplates: 1 x 2-1/4 inches round corner standard
- Strikes: Round corner strike 2-3/4 x 2-1/8 inches
- Latch: Round corner adjustable 2-3/8 x 2-3/4 inches
- Bolt: 1" throw, steel deadbolt
- Door Handing: Reversible
- Power Supply: Requires 4 AA alkaline batteries (not included)
- Battery Life: Approx. 1 year
- Wireless Protocol: Z-Wave 908.42 MHz (U.S.)
- Approvals: FCC
- Certifications: ANSI/BHMA grade 2 certified
- Warranty: Lifetime mechanical and finish warranty; 1 year electronics warranty
Product Docs
- Kwikset SmartCode 916 Z-Wave Plus Touchscreen Electronic Deadbolt Instructions
- Kwikset SmartCode 916 Z-Wave Plus Cerrojo Electrónico con Pantalla Tácil
- Kwikset SmartCode 916 Z-Wave Plus Touchscreen Electronic Deadbolt Screen Activation
- Kwikset SmartCode 916 Z-Wave Plus Touchscreen Electronic Deadbolt User Manual
