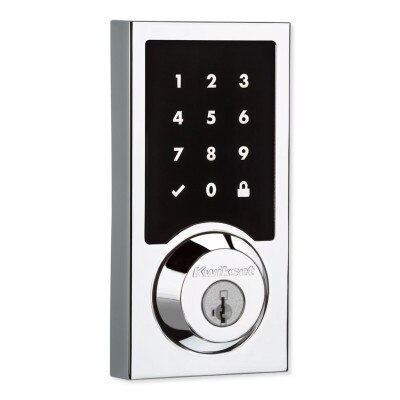

Kwikset SmartCode 916 Zigbee Contemporary Touchscreen Deadbolt with Home Connect
Product Description
The Kwikset SmartCode 916 Zigbee Contemporary Touchscreen Deadbolt with Home Connect technology allows your front door to communicate wirelessly to security and home automation systems via Zigbee.

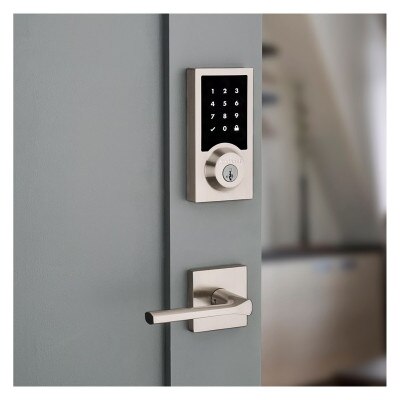

- For use on exterior doors where keyed entry and security is needed
- Featuring SmartKey Security™, which protects against advanced break-in techniques and allows you to re-key your lock yourself in seconds
- SmartKey Security™ re-key technology is compatible with Kwikset (KW1) keyway or (SC1) keyway options
- Comes with 2 keys
- Deadbolt Latch is 20 minute fire rated with round corner face
- ANSI/BHMA grade 2 certified

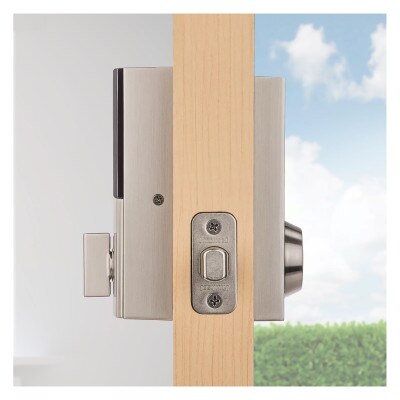

- Latch has adjustable backset 2-3/8" to 2-3/4" to fit all standard door preparations
- Includes round deadbolt strike 1 in. deadbolt throw
- 1 inch deadbolt throw

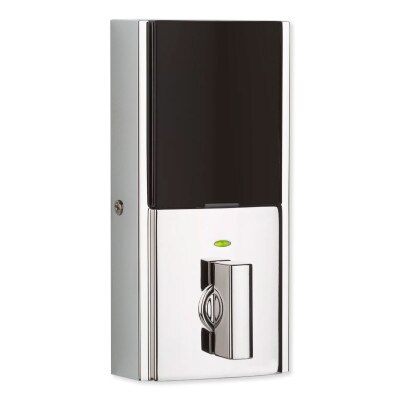

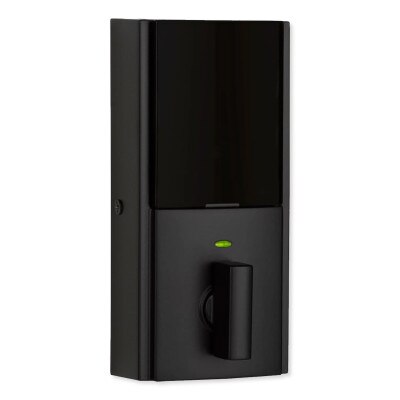

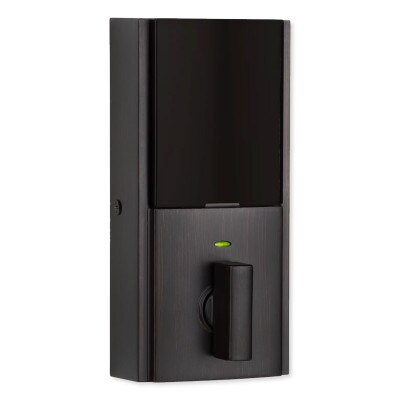

- Locking mechanism functions with turn piece on the interior of the lock
- Meets or exceeds Underwriter Laboratories (UL) testing requirements specified for each product grade or rating
- Requires 4 AA batteries, included
- Keypad stays lit for 5 seconds after inactivity
- Featuring Home Connect™ technology, your electronic lock can now interface with security and home automation systems using a ZigBee radio that connects to an in-home hub, such as a wireless router

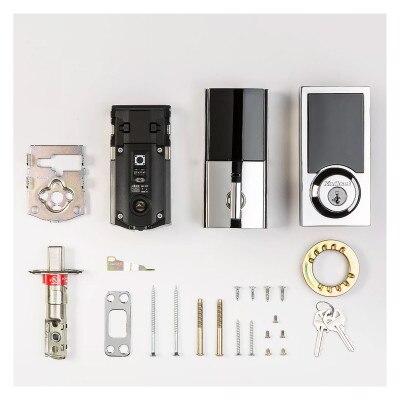

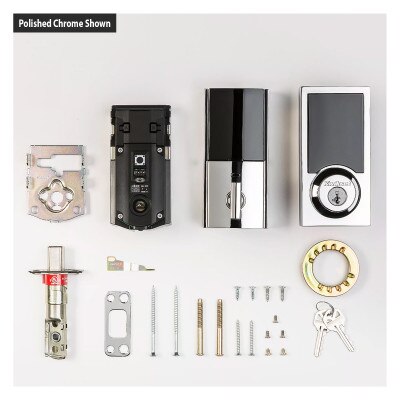

In The Box:
- Zigbee Touchscreen Deadbolt

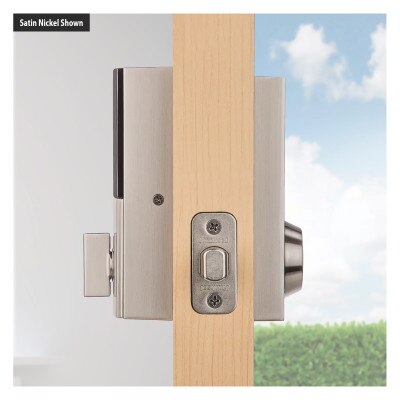

- Latch and Strike
- 2 x Standard Cut Keys
- Installation Hardware
Tech Specs
- Part Number:

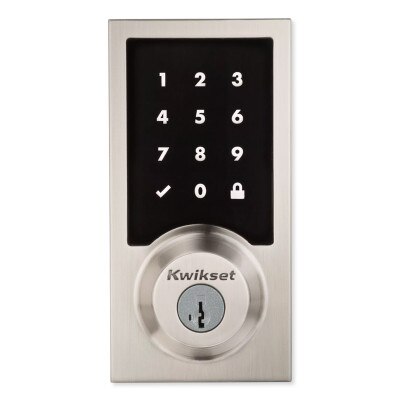

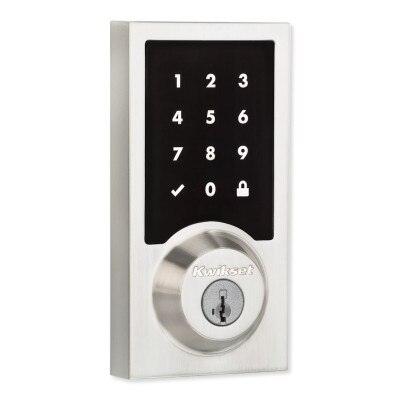

- 99160-034: Satin Nickel

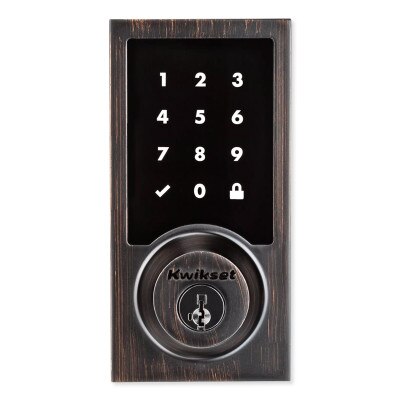

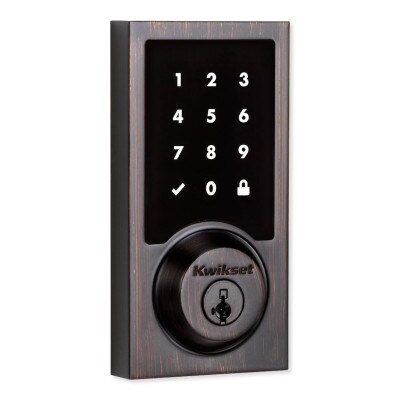

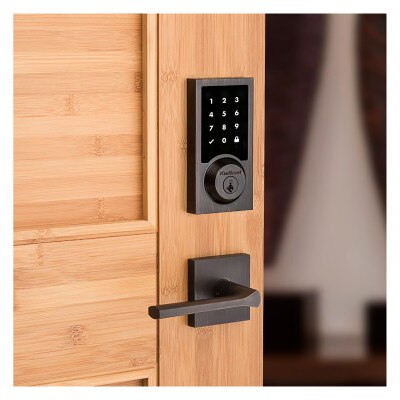

- 99160-035: Venetian Bronze

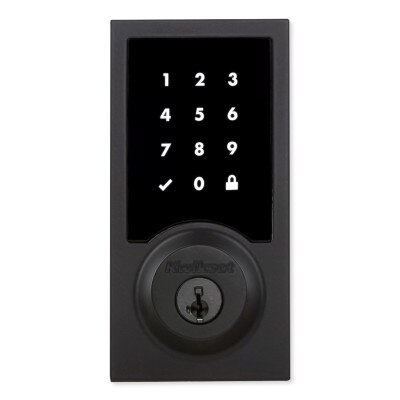

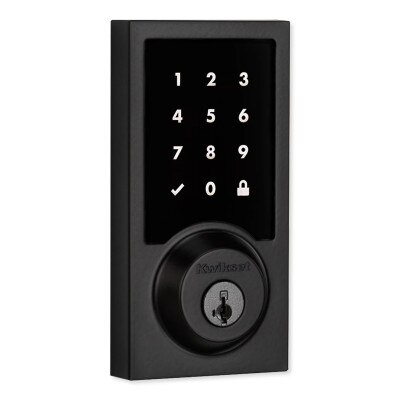

- 99160-036: Matte Black

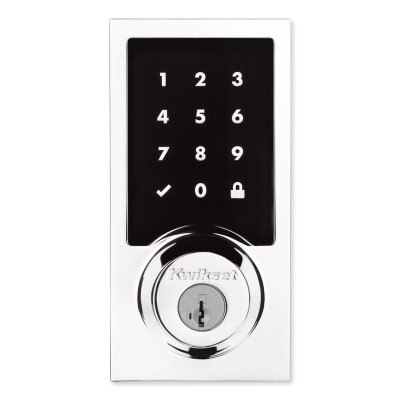

- 99160-037: Polished Chrome
- Function: Single cylinder deadbolt
- Door Prep: 2-1/8 inches diameter face hole and 1-inch diameter latch hole
- Backset: Adjustable 2-3/8 inches or 2-3/4 inches
- Door Thickness: 1-3/8 to 2 inches automatic adjustment
- Cylinder: SmartKey Re-Key Technology
- Faceplates: 1 x 2-1/4 inches round corner standard
- Strikes: Round corner strike 2-3/4 x 2-1/8 inches
- Latch: Round corner adjustable 2-3/8 x 2-3/4 inches
- Bolt: 1" throw, steel deadbolt
- Door Handing: Reversible
- Power Supply: Requires 4 AA alkaline batteries (not included).
- Battery Life: Approx. 1 year
- Wireless Protocol: Zigbee HA Version 1.2 (backwards compatible with V1.0 devices)
- Frequency: 2.4 GHz
- Range: Up to 35 feet (10m) indoors and 250 feet (76m) outdoors*
- Approvals: FCC
- Warranty: Lifetime mechanical and finish warranty; 1 year electronics warranty
Product Docs
- Kwikset SmartCode 916 Touchscreen Electronic Deadbolt User Manual
- Kwikset SmartCode 916 Cerrojo Electronico con Pantalla Táctil Guía de instsalación y usuario
- Kwikset SmartCode 916 Touchscreen Electronic Deadbolt Programming and Troubleshooting Instructions
- Kwikset SmartCode 916 Touchscreen Electronic Deadbolt Regulatory Compliance
