Leviton Decora In-Wall Countdown Timer Switch (10, 20, 30, 60 Min)
Product Description
The Leviton Decora In-Wall Countdown Timer Switch (10, 20, 30, 60 Min) provides timed control of motor lords and lighting. It's compatible with LED, CFL, Incandescent, Halogen, Magnetic Low Voltage, Electronic Low Voltage, and Fluorescent bulbs as well as fans and motor loads. It functions as a single pole timer switch (15 A, 120 VAC, and 1/2 HP) and features Zero Cross turn-on technology to extend the life of the switch. It's also designed with contemporary styling to match the decor of any room and is compatible with Decora Plus screwless wallplates (sold separately).
- Replaces a standard wall switch and ensures exhaust fans or lights are not left on unintentionally

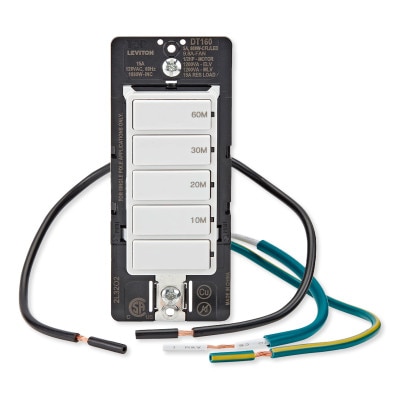

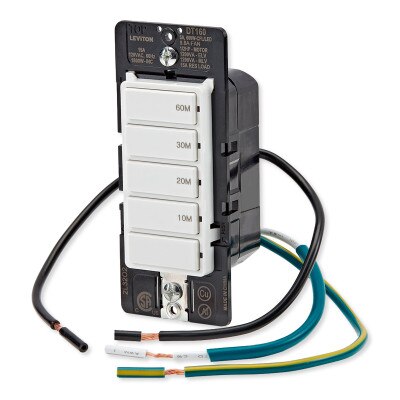

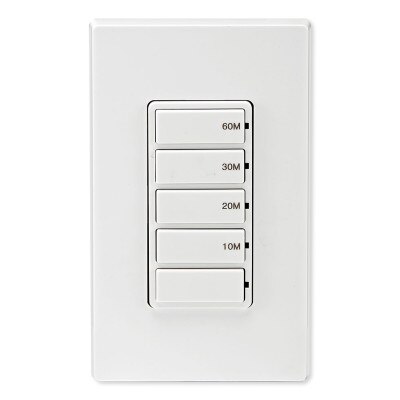

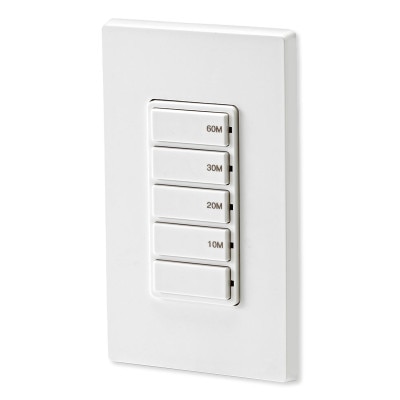

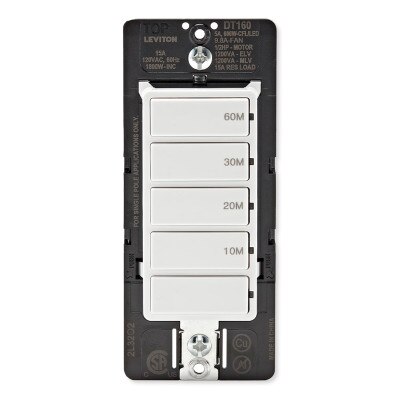

- 10-20-30-60 min preset time option buttons with separate off button

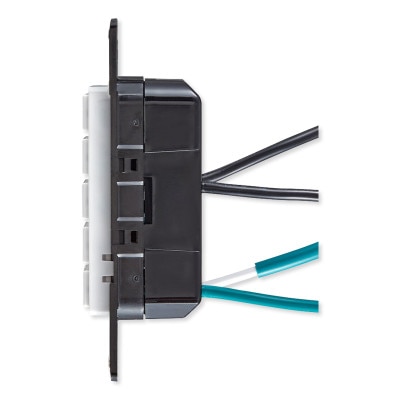

- Fits in the wallbox easily and lead terminal wires makes installation simple without having to bend wires around terminal screws

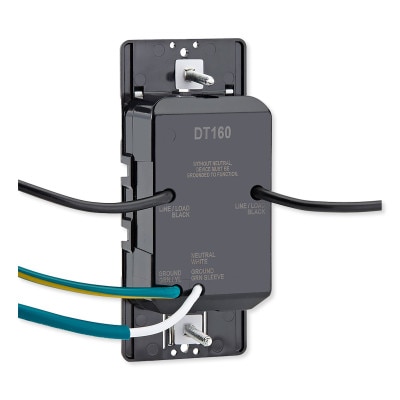

- Innovative Green Flex Sleeve wires to ground in homes with no neutral wiring or remove the sleeve and connect to a neutral wire if present in the wallbox. A ground wire is required for installation
- Two black wires can be interchanged between line and load to help prevent miswiring

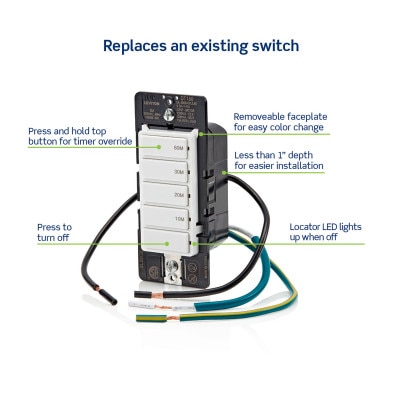

- Manual override keeps load on for 24 hours. Override can be disabled by pressing one of the timer option buttons or off button
Why You Would Use This Product:
Being able to set your lights or an appliance to automatically turn off can be beneficial for a variety of situations and for reducing energy cost. You can have the lights turn off in your children's room after 30 minutes, knowing the kids will have fallen asleep by then; or you can install the switch in a laundry room of an apartment building so that tenants don't accidentally leave the lights on. Other applications include porch and landscape lighting, interior lights, bathroom exhaust fans, heat lamps, pool pumps, hot tubs, saunas, attic fans, small closets, basements, garages and more.
In The Box:
- Decora In-Wall 60-Minute Countdown Timer Switch
- Installation Guide
Notes:
- Wallplate sold separately.
- Can be installed with or without a neutral wire. Ground wire required.
- Do not use it to control lights if there is no other light source in the space.
Tech Specs
- Part Number: DT160-1LW
- UPC: 078477264287
- Amperage: 15 A
- Wattage Rating: 600W, 1800W, 1200VA
- Brand: Decora
- Color: White
- Compatible Bulb Type: LED, CFL, Incandescent, Halogen, Magnetic Low Voltage, Electronic Low Voltage, Fluorescent, Fan, Motor
- Device Type: Timer Switch
- DTKIT Faceplate Colors: White, Ivory, Light Almond, Gray, Black, Brown (sold separately)
- Function: Single-Pole (SP)
- Other Features:
- Innovative Green Flex Sleeve wires to ground in homes with no neutral wiring or remove the sleeve and connect to a neutral wire if present in the wallbox. A ground wire is required for installation
- Life of the switch extended with Zero Cross turn-on technology
- Two black wires can be interchanged between line and load to help prevent miswiring
- Grade: Residential
- Grounding: Yes
- Horsepower Rating: 1/2 HP
- Mounting Type: In-Wall
- Neutral Required: Optional
- Power Consumption: <1 Watt
- Style: Push Button
- Termination: Leads
- Timer Options: 60-Minute (10M, 20M, 30M, 60M)
- Timer Type: Countdown
- Voltage: 120 VAC
- Wallplate: Not Included
- Certifications: CSA, FCC, IC
- Warranty: 5 years
