  • Leviton Decora Smart Zigbee 3.0 Switch, 15A

Leviton Decora Smart Zigbee 3.0 Switch, 15A

$47.13
SKU: LVDG15S1BW

Order now and we'll ship usually within 3-5 business days.

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Product Description

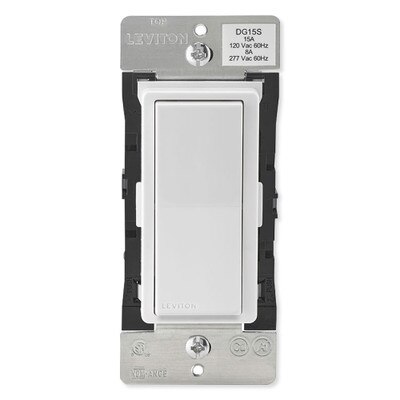

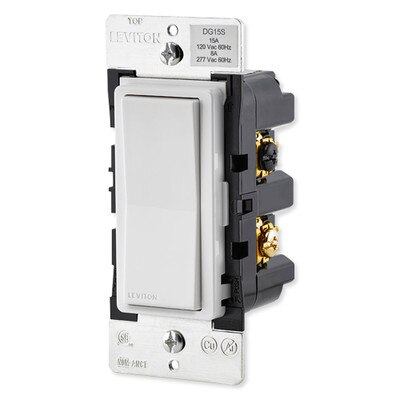

The Leviton Decora Smart Zigbee 3.0 Switch, 15A is Zigbee 3.0 certified and includes the latest in Zigbee technology for interoperability and network security. Zigbee uses mesh networking technology to provide quick, reliable, and secure communication to a wide variety of Zigbee certified smart products such as sensors, thermostats, locks, and more.

The DG15S provides On and Off of connected lighting via the manual Decora rocker switch or can be controlled wirelessly as part of a Zigbee network. The DG15S is also compatible with a wide variety of load types such as Incandescent, LED/CFL, and Fluorescent. The DG15S is built for performance with a 15A relay and is also rated for 1/2 HP motor loads.

  • Rated for CFL and LED loads up to 600W
  • Rated for incandescent loads up to 1800W
  • Multi-location (3-way) dimming is achieved using DD0SR-1 Coordinating Remote (no LED indicator) or DD0SR-DL Matching Remote (with LED indicator).

In The Box:

  • Smart Zigbee Switch

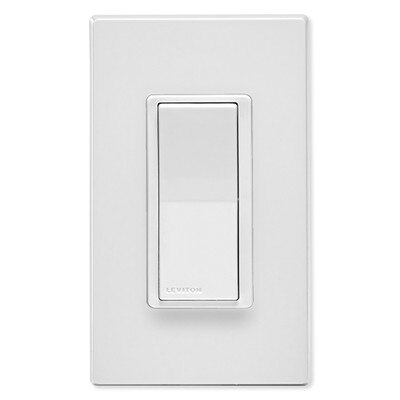

  • Decora Wallplate, White

NOTES: Wireless operation requires a Zigbee automation controller, its associated mobile app, and an Internet connection. Requires a neutral wire connection.

Tech Specs

  • Part Number: DG15S-1BW
  • UPC: 078477269855
  • Color: White
  • Ratings:
    • LED/CFL 5A – 600W
    • Incandescent/Halogen – 1800W
    • Resistive – 15A
    • Fluorescent – 15A, 1800W
    • Inductive – 1800VA
    • Motor – 1/2 HP
  • Neutral Required: Yes
  • Termination: Screw Terminals
  • Voltage: 120VAC, 50/60Hz
  • Operating Temperature: 32 to 104°F (0 to 40°C)
  • Operating Humidity: 0 to 90% non-condensing
  • Certifications: UL, FCC, CSA, NOM, Zigbee 3.0
  • Warranty: 5-Year Limited

Product Docs
