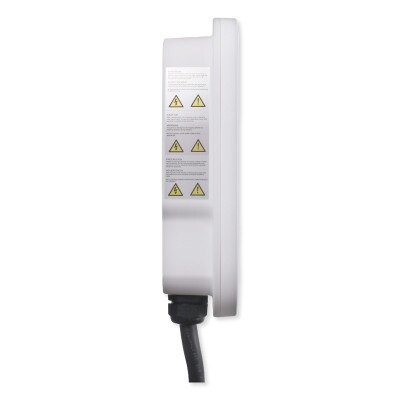

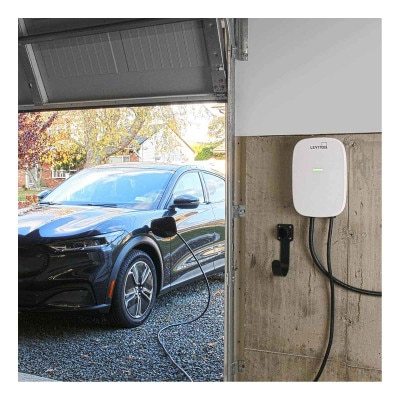

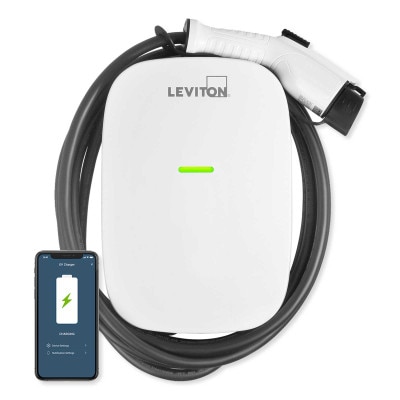

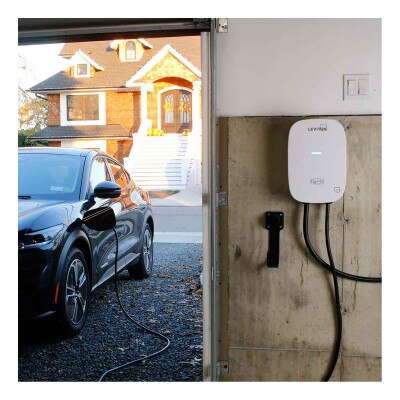

Leviton EV 80A Level 2 Electric Vehicle Charging Station, 18 Ft. Cable, Wi-Fi

$1,466.41
SKU: LVEV80W

Order now and we'll ship usually within 3-5 business days.

WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

This is a heavy and/or oversized item and does not qualify for our shipping promotion.

Product Description

The Leviton EV 80A Level 2 Electric Vehicle Charging Station, 18 Ft. Cable adds fast charging of any SAE 1772™ compatible electric vehicle to a home or commercial building. This EV charger delivers up to 19.2kW of power, and RFID card reader for fast activation, and offers a more compact, affordable, easy to use and easy to install solution to electric vehicle charging. Additionally, this EV charging station is Wi-Fi compatible, allowing users to check in on the device's status, receive notifications, or remotely turn On/Off the charging station from the My Leviton mobile app for iOS and Android.

  • "Auto-Reclosure" feature enables charging to restart following a minor fault, thereby reducing the chance of having an undercharged battery
  • New cable design prevents cord from freezing and cracking in extreme weather
  • Status indicator lights indicate power, charging status, and faults
  • Integrated On/Off switch to minimize standby power
  • Additional safety features include over current, over voltage, under voltage and short circuit protection
  • Compact size, and unique wiring compartment design provides a hassle-free installation
  • Water-Resistant enclosure is rated NEMA Type 3R for indoor and outdoor use
  • Thermoplastic vandal-proof enclosure withstands the harshest environments
  • Remote access and alerts via My Leviton app
  • Voice control compatible with Amazon Alexa, Google Assistant, and Apple Siri

Why You Would Use This Product:

The Leviton EV 80A Level 2 Electric Vehicle Charging Station, 18 Ft. Cable brings near universal EV charging to your home or business. The Charging Station's weather, water, and surge resistant design allow it to continually operate in most environments. With an industry standard SAE J1772™ cable, this EV charging station can charge any EV, including Audi, BMW, Ford, Honda, Subaru, and even Tesla with a Tesla-supplied adapter (sold separately).

My Leviton App

The My Leviton app offers remote control of Wi-Fi compatible Leviton devices, including Decora Smart™ Wi-Fi® products and EV Charging Stations. From the app, users can check on device status, review notifications and charging alerts, or turn devices On/Off from anywhere using their smartphone or tablet.

In The Box:

  • Evr-Green Charging Station
  • 18 ft Charging Cable

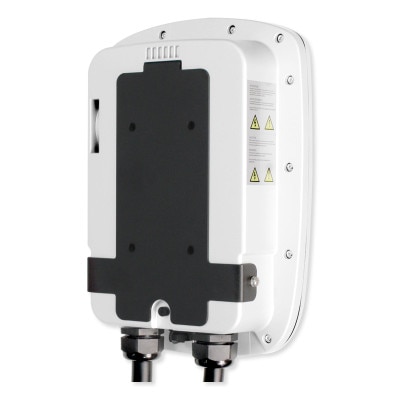

  • Wall Mounting Bracket
  • 2 x M5 teeth screws
  • 4 x M6 Hexagonal Expansion Screws
  • 2 x RFID Cards
  • Administrator RFID Card

NOTE: This EV home charging station does not include a recommended hook for hanging the charge connected cord when not in use.

Tech Specs

  • Part Number: EV80W
  • UPC: 078477334096
  • Warranty: 2-Year Limited

Electrical

  • Amperage: 80A
  • Breaker: 100A
  • Voltage: 208/240 VAC
  • Output Power: 19.2kW
  • Phantom/Standby Power: <7.5 W
  • Short Circuit Current Rating: 20 mA CCID per UL 2231
  • Charge Connector Cord: #10 AWG SAE J1772
  • Number of Phase / Wire: L1, L2 and Ground, Bottom Feed

Environmental

  • Operating Humidity: 0 to 95 % Relative, Non-Condensing
  • Charging Cord Operating Temperature: -22°F to 122°F (-30°C to 50°C)
  • Operating Altitude: Up to 6,500 ft. (2,000 m)
  • Cooling: Natural Cooling

Material

  • Cover Locking Mechanism: Phillips Head Screws, No Padlock Option
  • Enclosure Material: Plastic (PC+PBT)
  • Enclosure Rating: NEMA Type 3R
  • Status Indicator: Power Present, Charging, Fault
  • Cable Length: 18 Ft. (5.5 m)
  • Dimensions: 13.8 x 9.8 x 5.1 inches (350.5 x 228.6 x 129.5 mm), excluding charging cable, mounting plate and cable holder

Standards & Certifications

  • UL2594, UL 2231-1, UL 2231-2, UL 2251, UL 62, UL 991, UL 1998, NFPA 70 Article 625, UL840, CSA Std. C22.2#280, OCPP 1.6 Compliant
